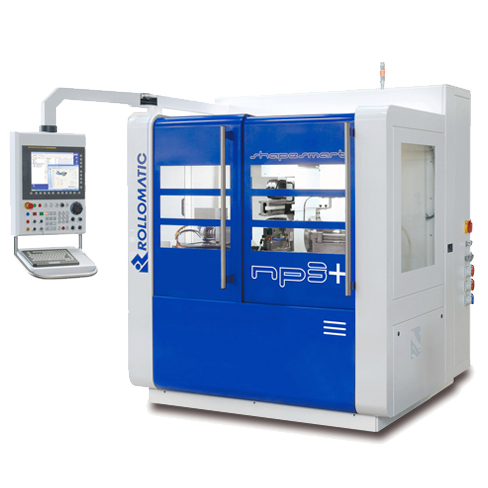

ShapeSmart® NP3+



The ShapeSmart®NP3+ has been redesigned both ergonomically and technically to offer the best value for quality, price and performance.

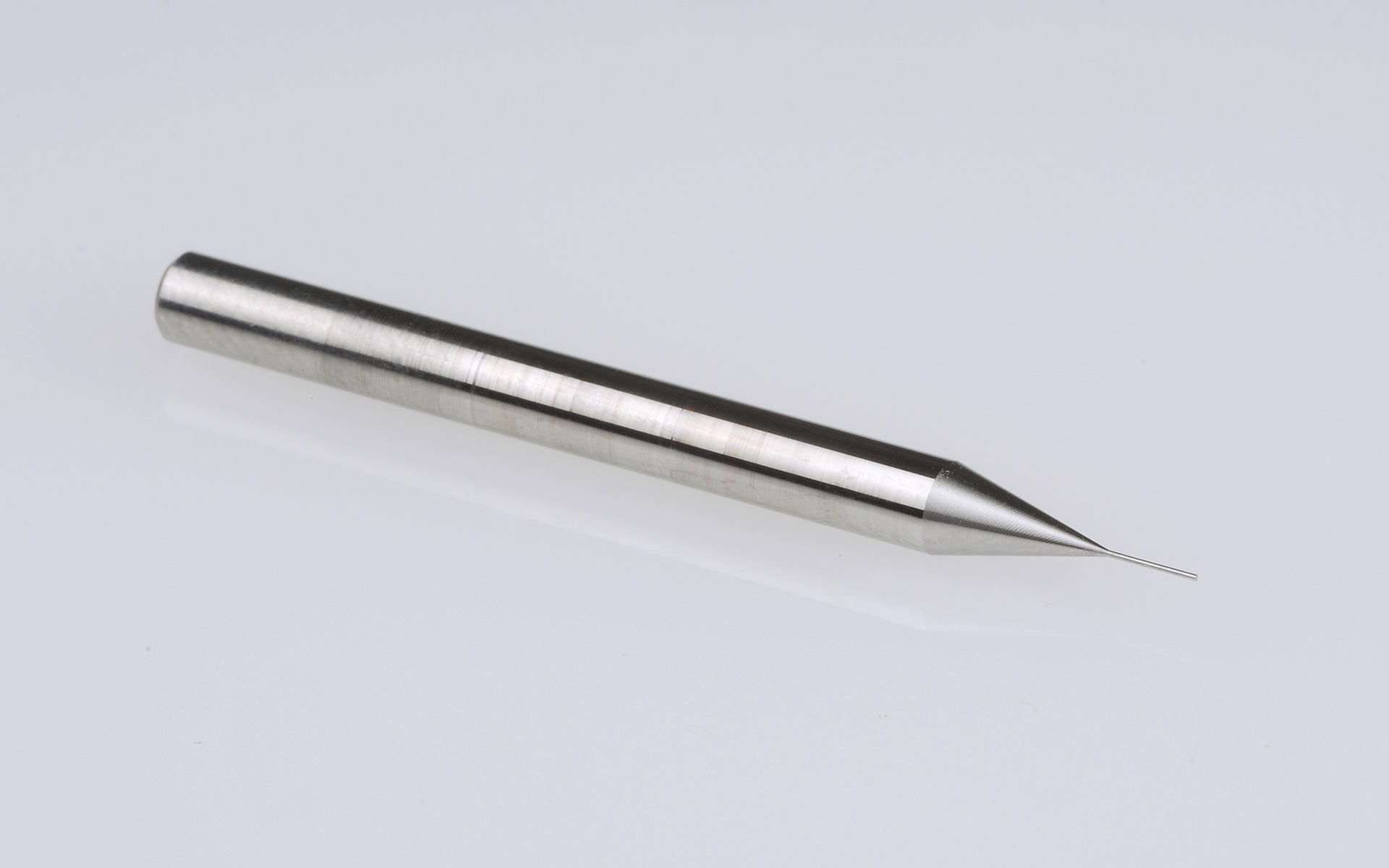

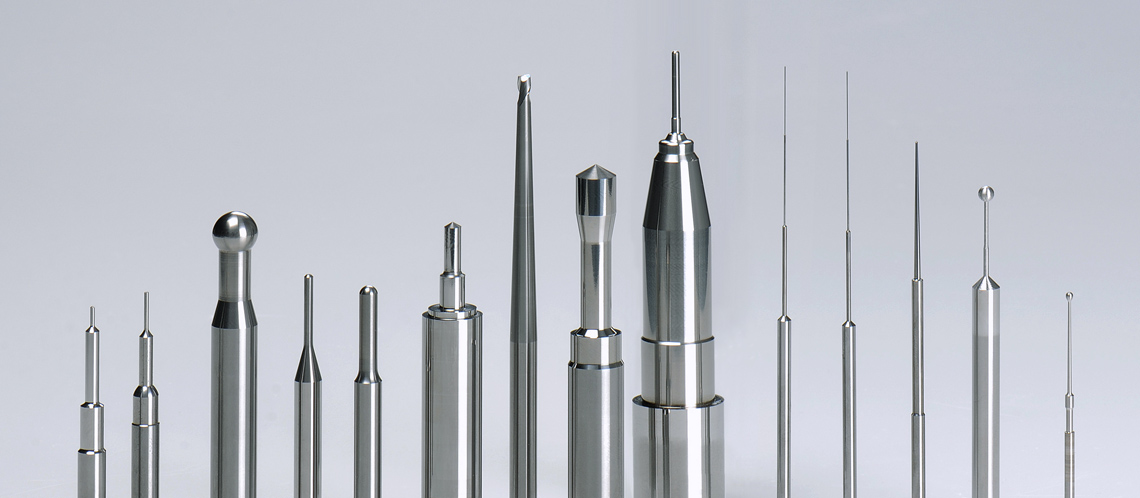

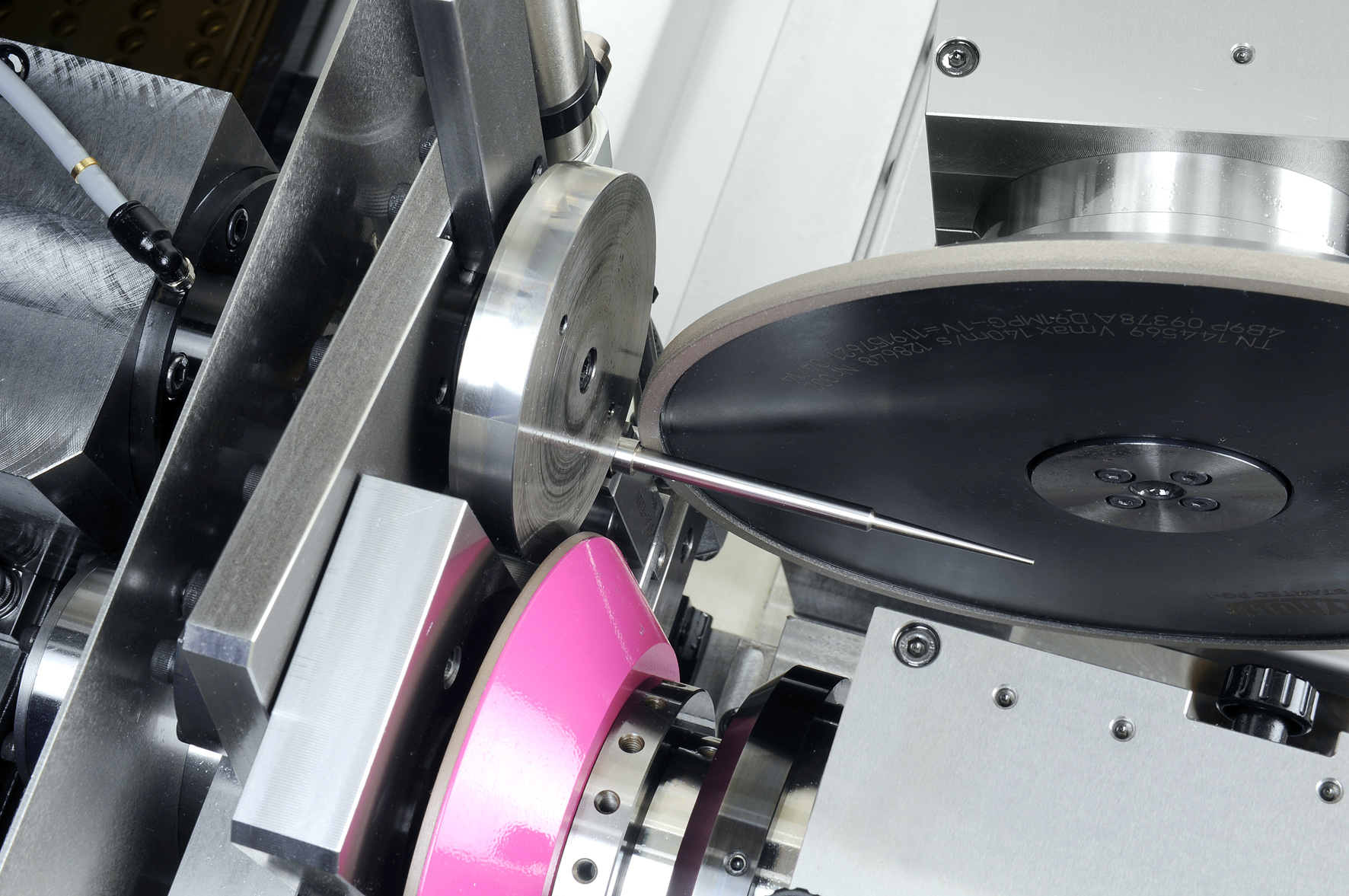

With a choice of 3 or 4 CNC axes and based on the method of peel grinding with simultaneous engagement of a roughing and a finishing wheel, the ShapeSmart®NP3+ is a precision pinch and peel grinding machine for the preparation of cutting tool blanks such as endmills, drills and other stepped cylindrical tools, covering a range of diameters between Ø 0.025 and Ø 25.0 mm.



YOUR BENEFITS

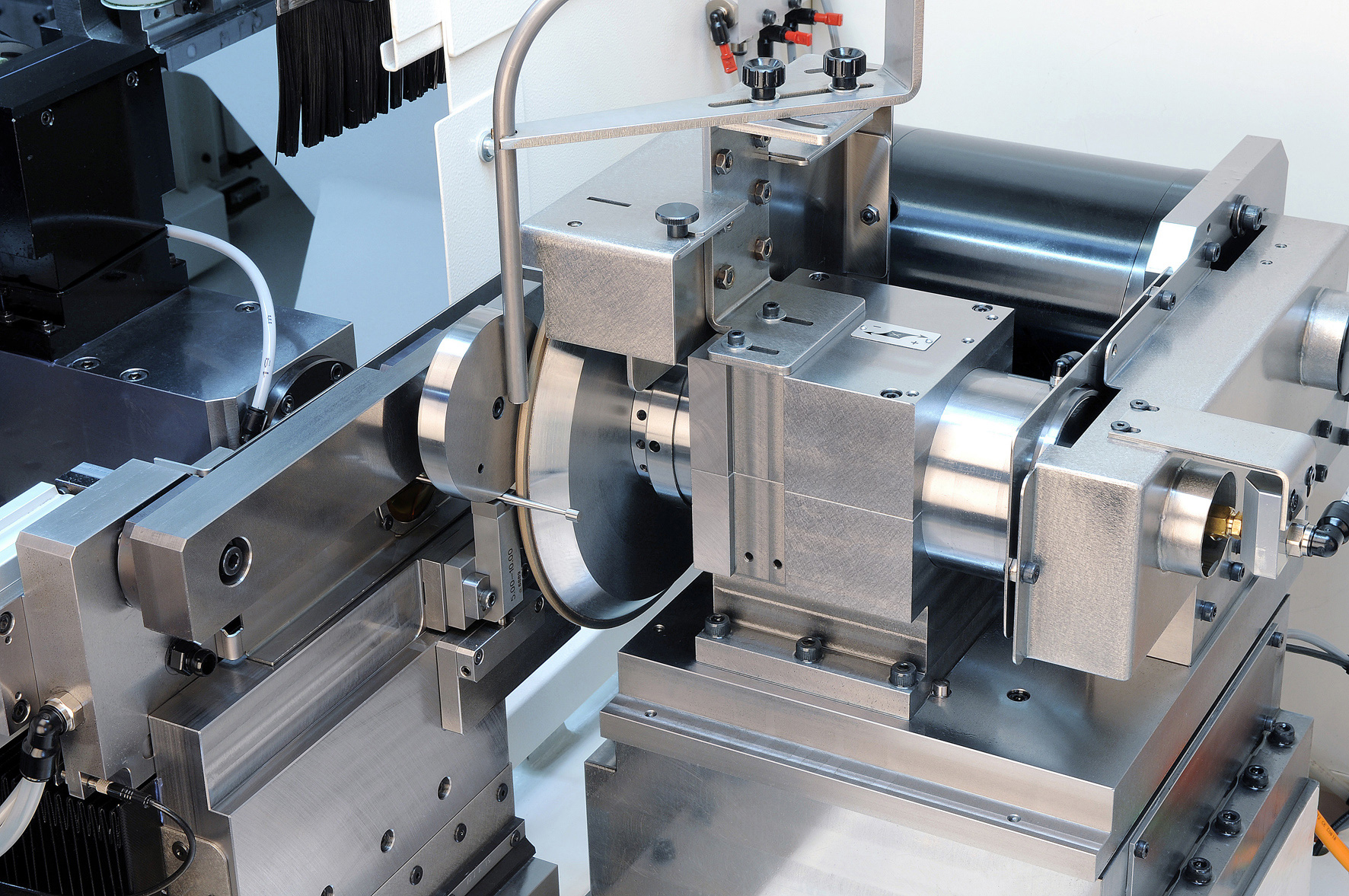

  • The shank guide system ensure a TIR after grinding of less than 0.002mm.
  • Automatic loader with a capacity of 1360 pieces
  • Automatic qualification of wheel positions

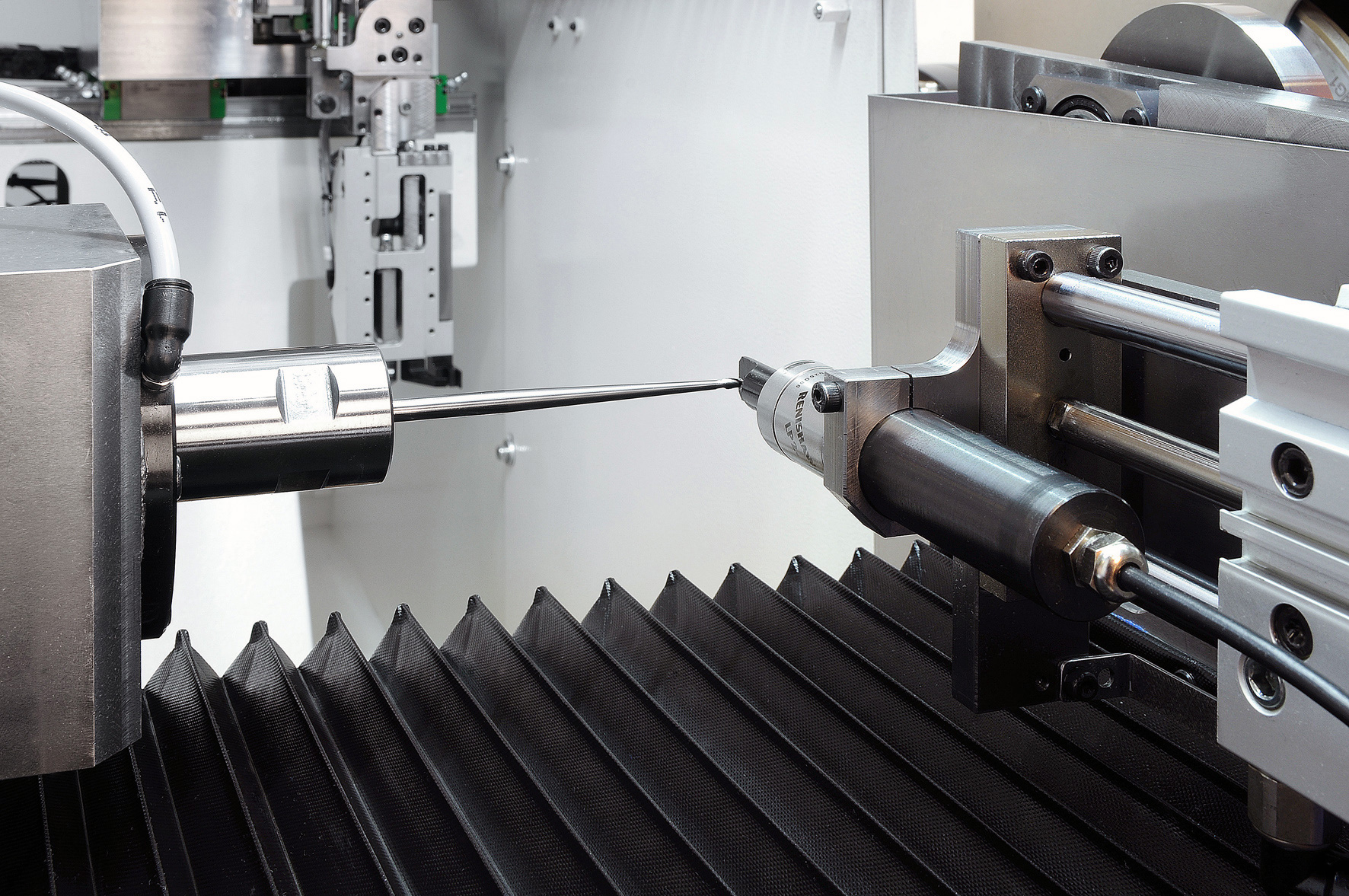

  • In-process tool measuring system for unattended production and diameter control under 0.002mm.

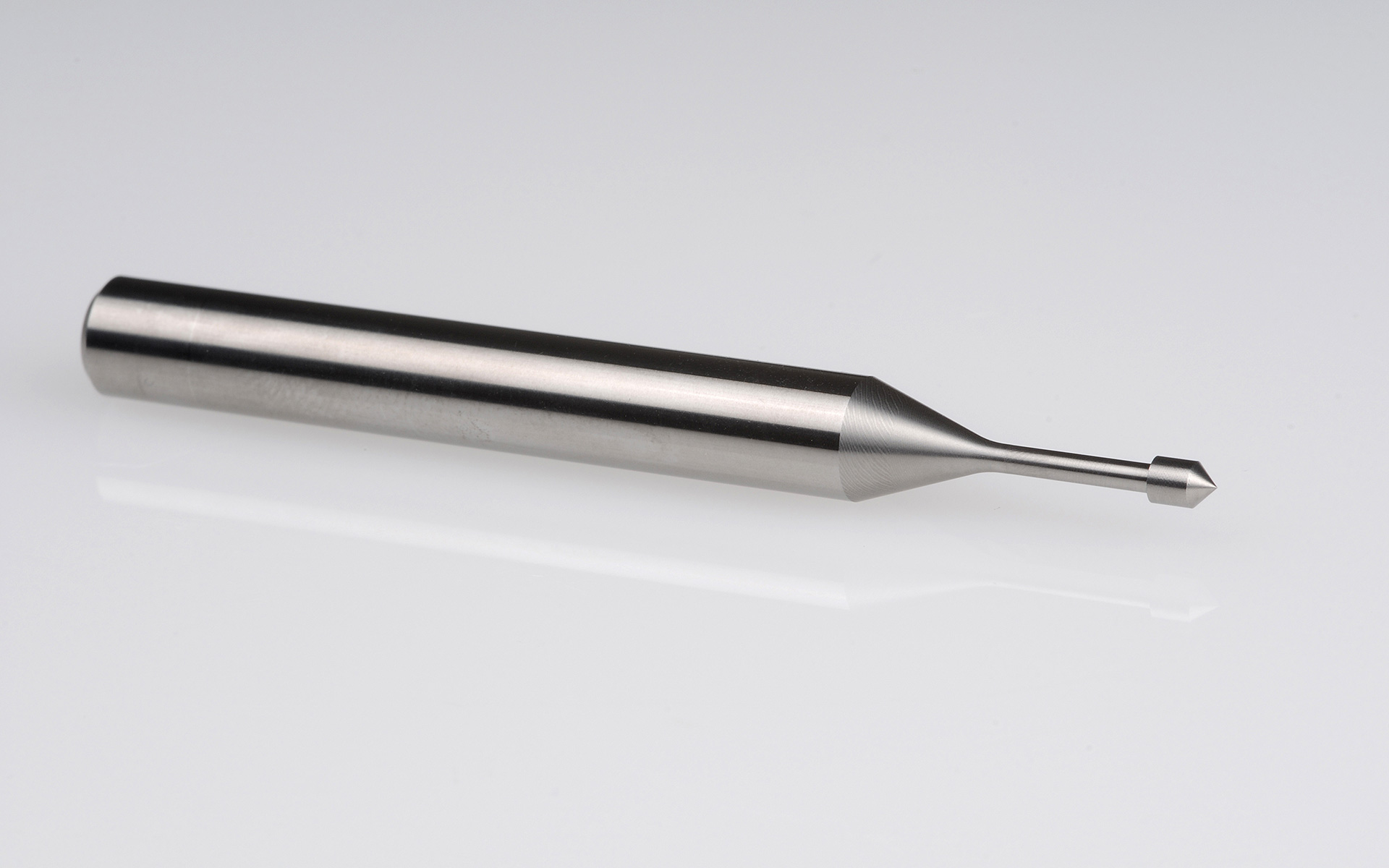

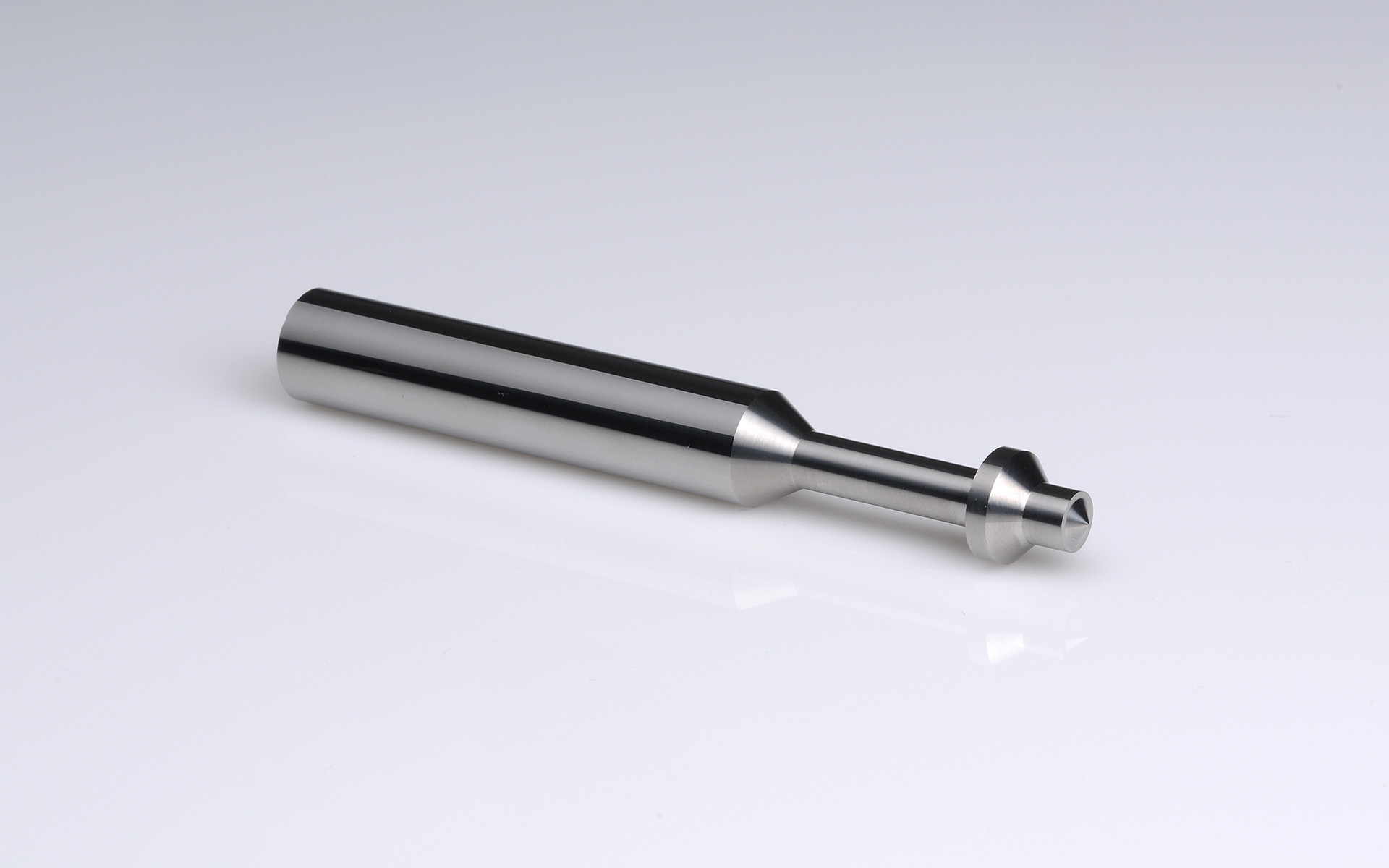

  • 3D touch probe for accurate recessed and tapered neck grinding on cutting tool blanks
  • Flipper station able to grind double ended tools (up to 200mm)
  • New 15" control panel with integrated PC

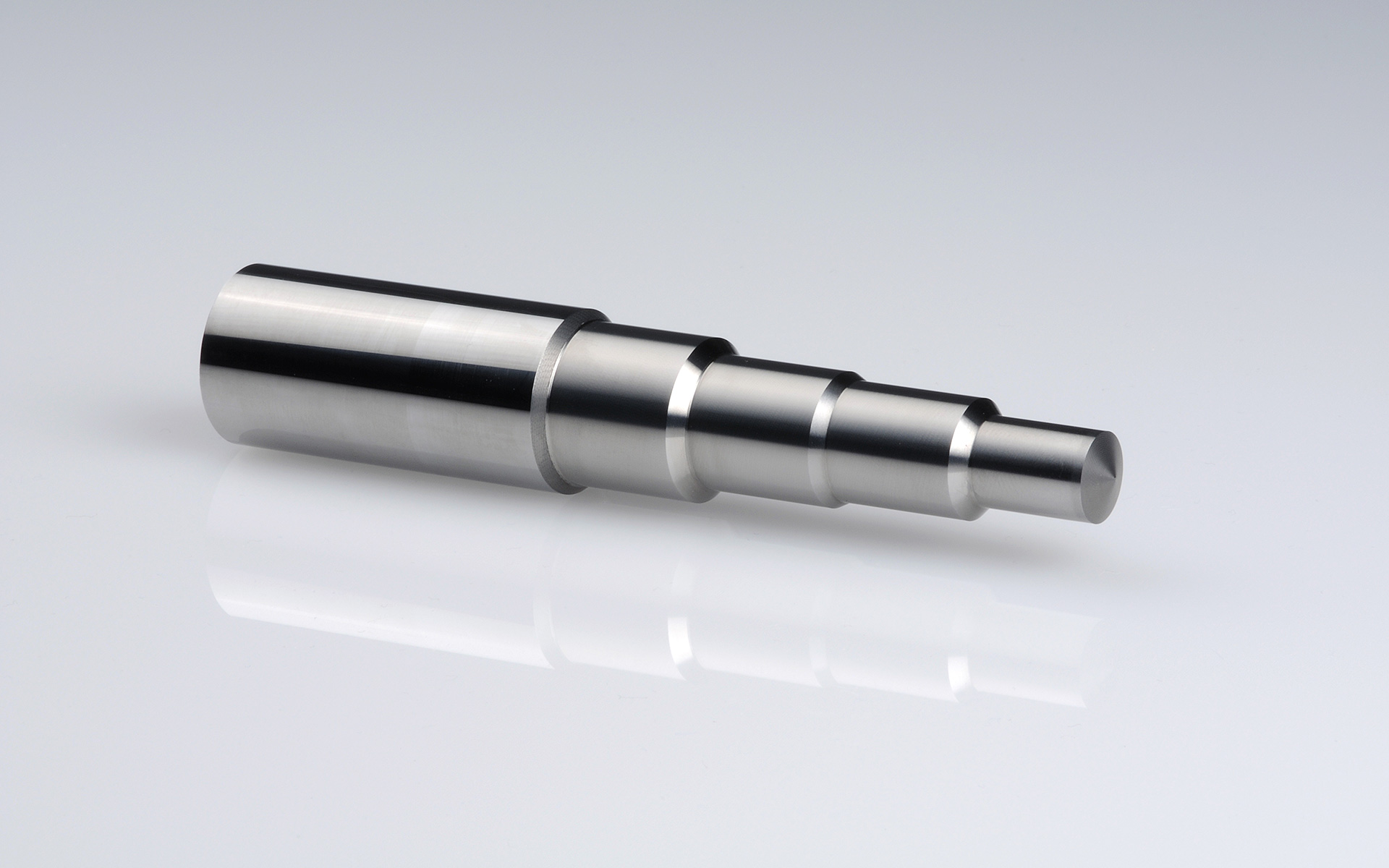

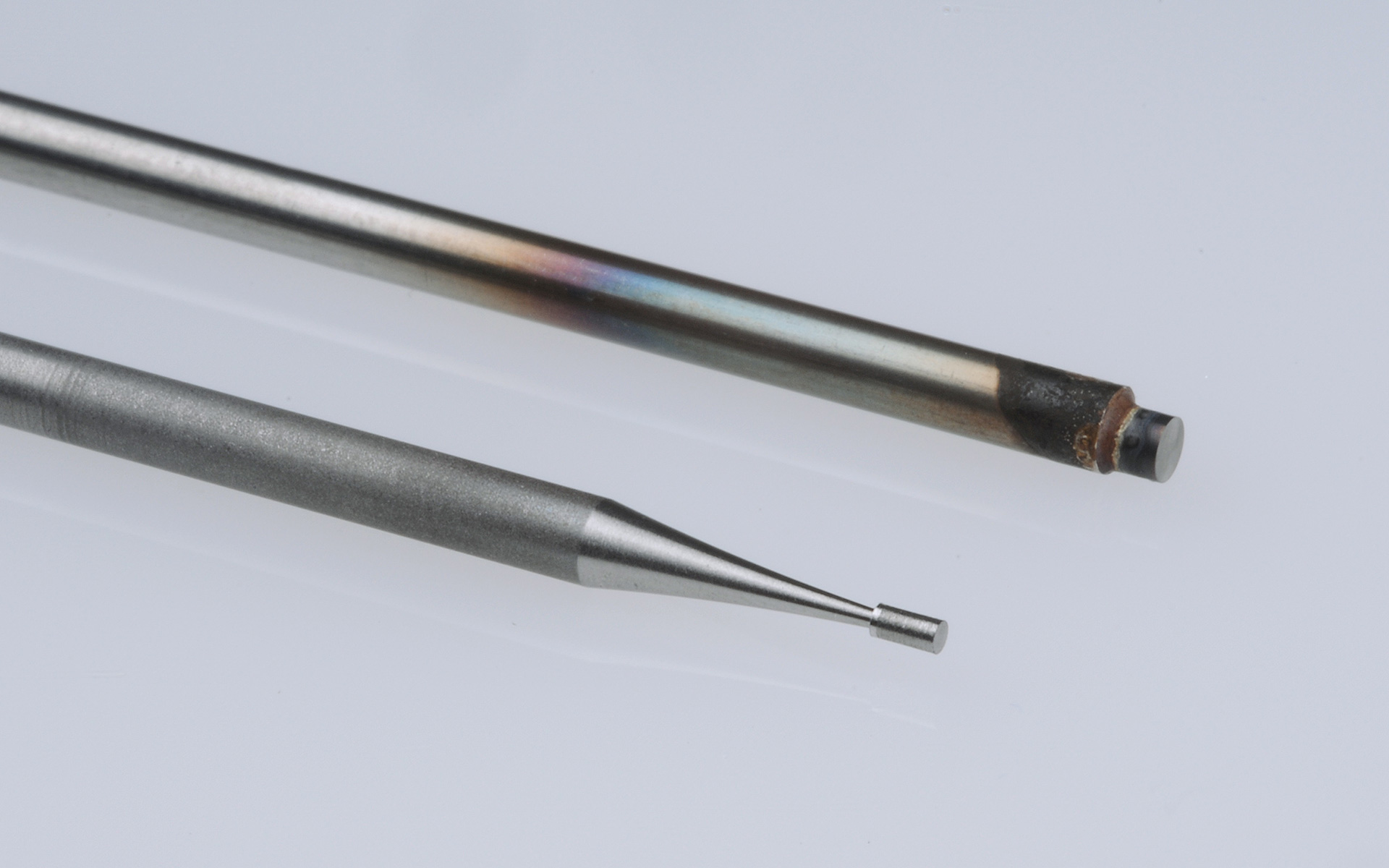

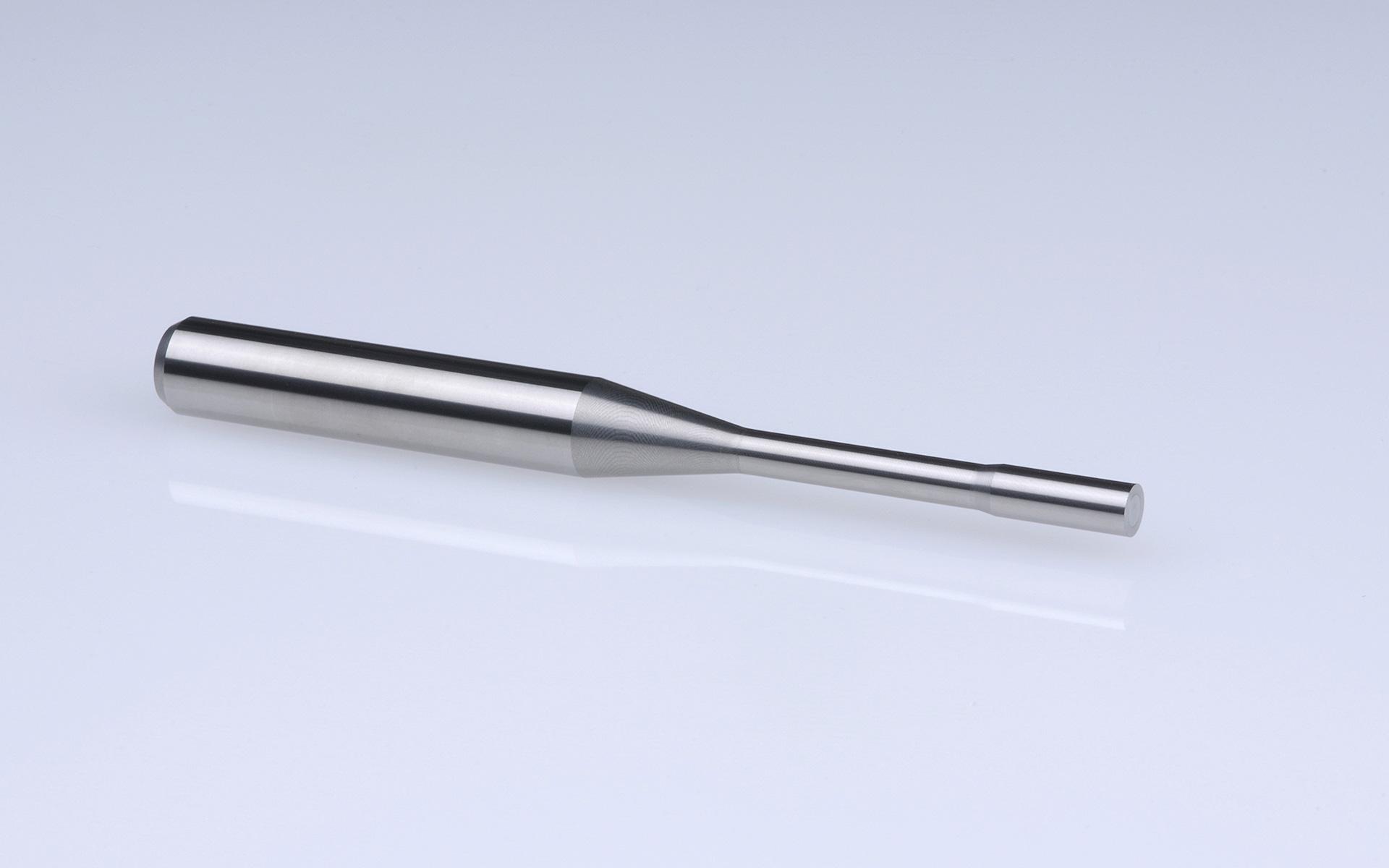

APPLICATIONS
