MpC

500 Ta:C

New & unique!



MpC 500 Ta:C

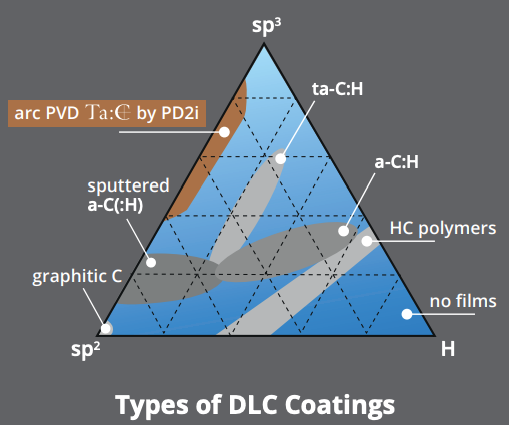

Tetra amorphous carbon thin film

DO IT YOURSELF

Super Hard Carbon coatings in-house!


HIGHLIGHTS
  • HPIES High Performance Ion Etching System

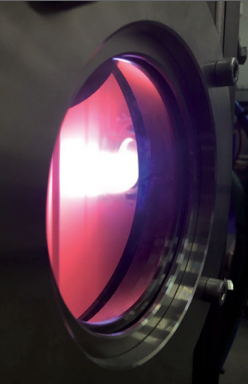

  • Special designed ARC source
  • Smooth coatings
  • ~ 80 % sp3 content
  • 50 – 60 GPa coating hardness
  • Low running costs

THROUGHPUT
  • Useful coating volume: Ø 450 x H 400 mm
  • Up to 3 batches / day – Cycle time 6 to 8 hrs

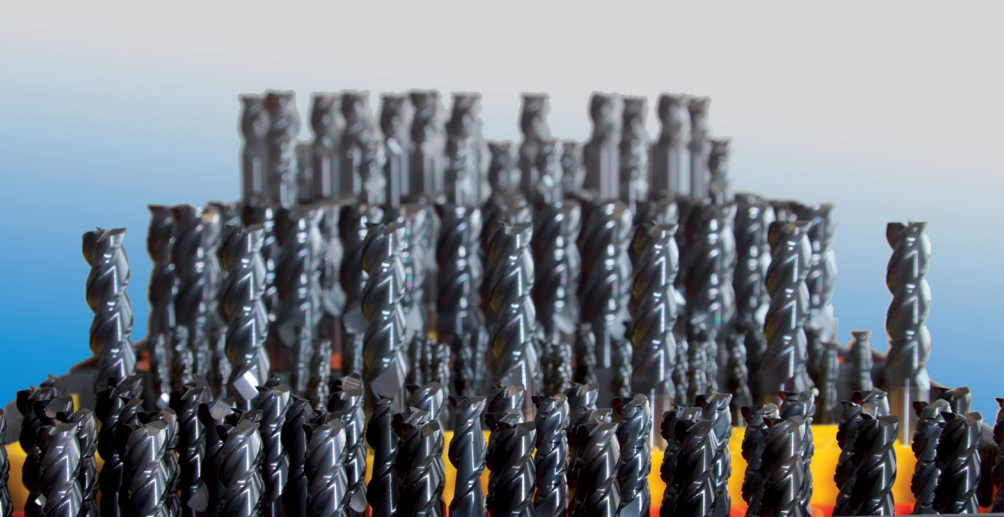

  • Qty / batch:

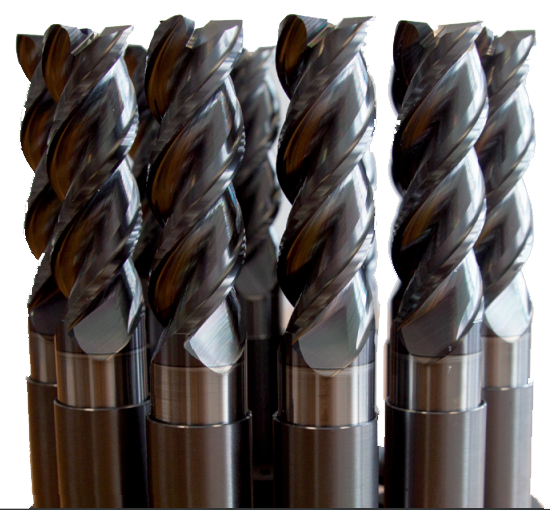

    • End mills Ø10 x 70 mm: 432 pieces
    • Drills Ø12 x 150 mm: 288 pieces
    • Inserts: 2.400 pieces


CUSTOMER BENEFITS
  • Excellent cost per piece ratio by doing Ta:C coatings in-house (compared to job coating services)
  • Enables new markets for carbide tool makers by replacing PCD tools through carbide tools + Ta:C coating in a wide range of applications
