MpC 1000



Innovative Multipurpose PVD Coating System

HIGH PERFORMANCE COATINGS

A modular equipment that allows evolutionary configuration for current and future requirements

Available Technology Configuration:
  • 4 Arc Sources
  • 4 Magnetrons
  • Duplex PVD
  • Hybrid Arc + Sputtering

HIGHLIGHTS
  • HPIES High Performance Ion Etching System
  • Rapid target material exchange
  • Lowest cost per batch
  • Negligible coating thickness tolerance +/- 0,2
  • Up to 4 different target materials
  • Customized configuration: e.g. 2 ARC + 2 Magnetron
  • Flexible and productive

THROUGHPUT
  • Usable coating volume: Ø 450 x H 500 mm or Ø 650 x H 500 mm
  • Up to 4 batch / day – Cycle time 3 to 4,5 hrs
  • Qty / batch:
    • End mills 10 x 70 mm: 576 - 864 pieces
    • Hobs 120 x 150: 24 - 36 pieces
    • Inserts: 2560 - 3840 pieces
  • Duplex coating
  • Smooth coatings

WIDE COATING PORTFOLIO :
Monolayers • Multilayers • Gradient layers • Nano layers • Nanocomposite • Duplex layers

Dedicated Coatings:

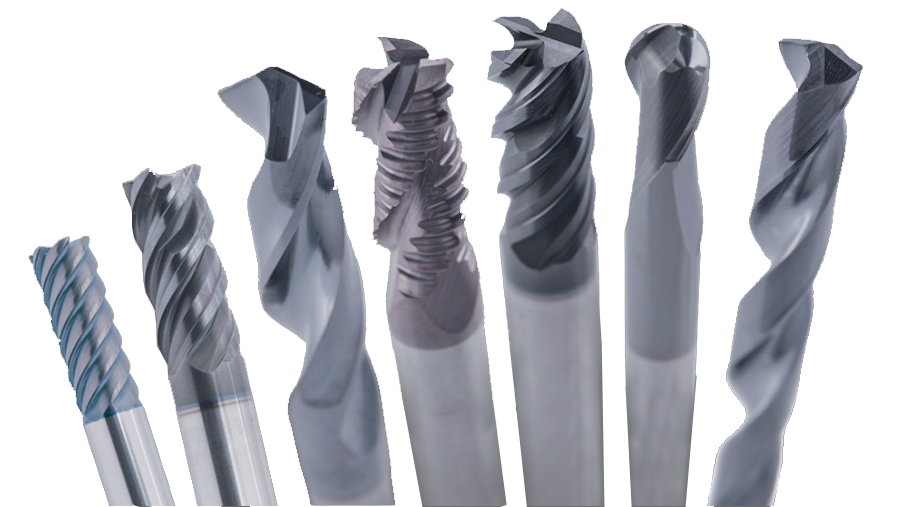

  • Cutting tools
  • Forming and Molding
  • Precision components
