CNC Milling / Turning

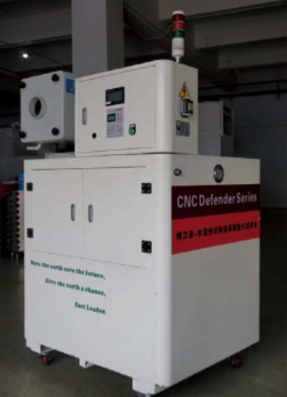

CNC Defender Series

Read More »

CNC Grinding / EDM / Wire-cut

FL-AIO80

CNC Grinding / EDM / Wire-cut

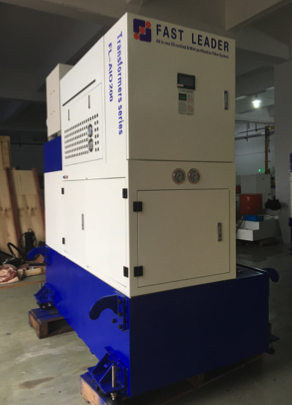

FL-AIO200

CNC Grinding / EDM / Wire-cut

FL-AIO300

CNC Grinding / EDM / Wire-cut

FL-AIO600

CNC Grinding / EDM / Wire-cut

FL-AIO HSS600

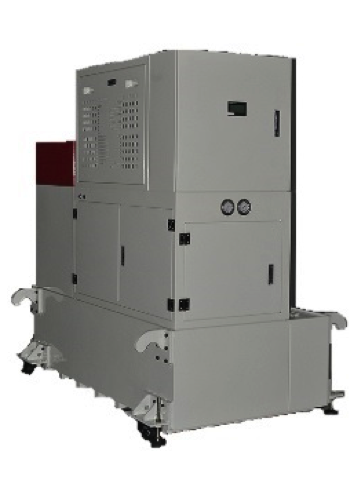

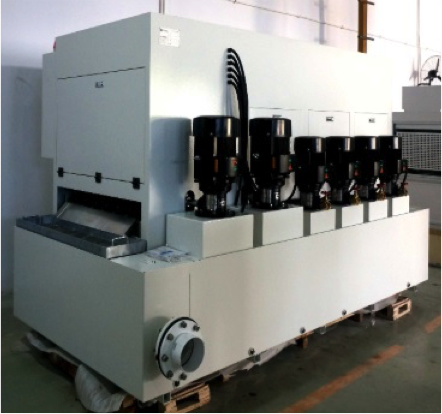

CNC Grinding / EDM / Wire-cut Machine Center

FL-AIO80

FL-AIO200

FL-AIO300

FL-AIO600

FL-AIO HSS600

More and more high accurate small cutting tools offer to IT industry. They have purchased high precision machine, such as Rollomatic, Ttb, Saacke, Walter, Anca, etc. Have constant temperature room, have high precision measuring machining and so on, But ignore the grinding oil temperature stable control, as we knew 0.1°C temperature stable control is very hard, But we can do it and will be happy to share with you.



Since 2009 This filter systems that we have sold to Germany, Japan, Russian, Korea, Taiwan, China, India & etc. Until now lots of customers finally understood the oil temperature stable control is very important. Especially they have Rollomatic,Ttb,Saacke, Walter, Anca machine.

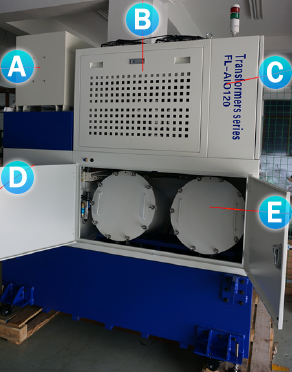

A. Electrostatic Oil Mist Purification Systems
High efficient oil mist purification. ≥ 0.3 µm particles could purificate achieved to 95%. To solve the problem of air pollution and prevent oil mist burst.
B. Direct Chiller System Patented Design
After filtration 100% hot clean oil direct into the chiller system, and to get 100% clean oil cooling, whole tanks was been cooling by chillers. So we can get stable temperature control within +/- 0.1°C for smaller tools grinding.
C. Advanced Control System TUVE CE
Mitsubishi PLC controller Schneider electrical control elements. High quality and easy understanding and maintain.
D. Dust Recycling System
1. Tungsten carbide powder recycling.
2. Value added.
3. Avoid the dirty oil spiling to the clean oil tank when back flushing.
E. Patented Filter System
1. Easy replace filter cartridges
2. High precision filtering
3. PE filter cartridges can use oil coolant also can use water base coolant.

Advantage :

  • One filter system could solve all of the problems when grinding.
  • High precision 1um filtration.
  • High oil temperature control within ±0.25°C stability.
  • 95% High efficient oil mist for ≥0.3um particles purification.
  • High efficient tungsten carbide mud collector and recycle.
  • Replace the filter cartridges charge is only 1/6 cost compare with the other competitors and 10 times replace the filter cartridges fast than them.
  • Designed by modular system and easy for maintain.
