ShapeSmart® NP30

The ShapeSmart®NP30 is designed for tool manufacturers who are looking for a machine with the best value for quality, reliability, price and performance.

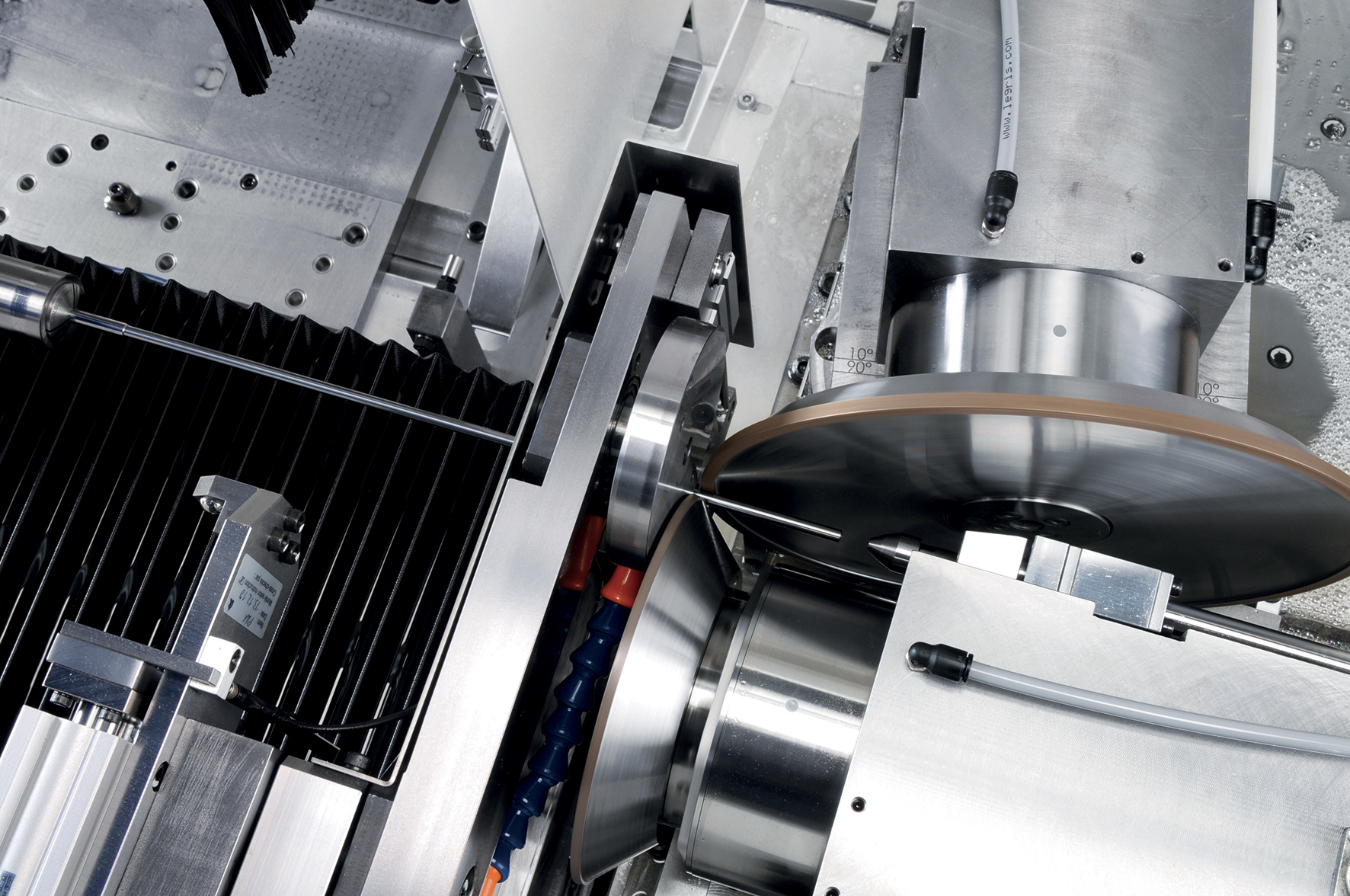

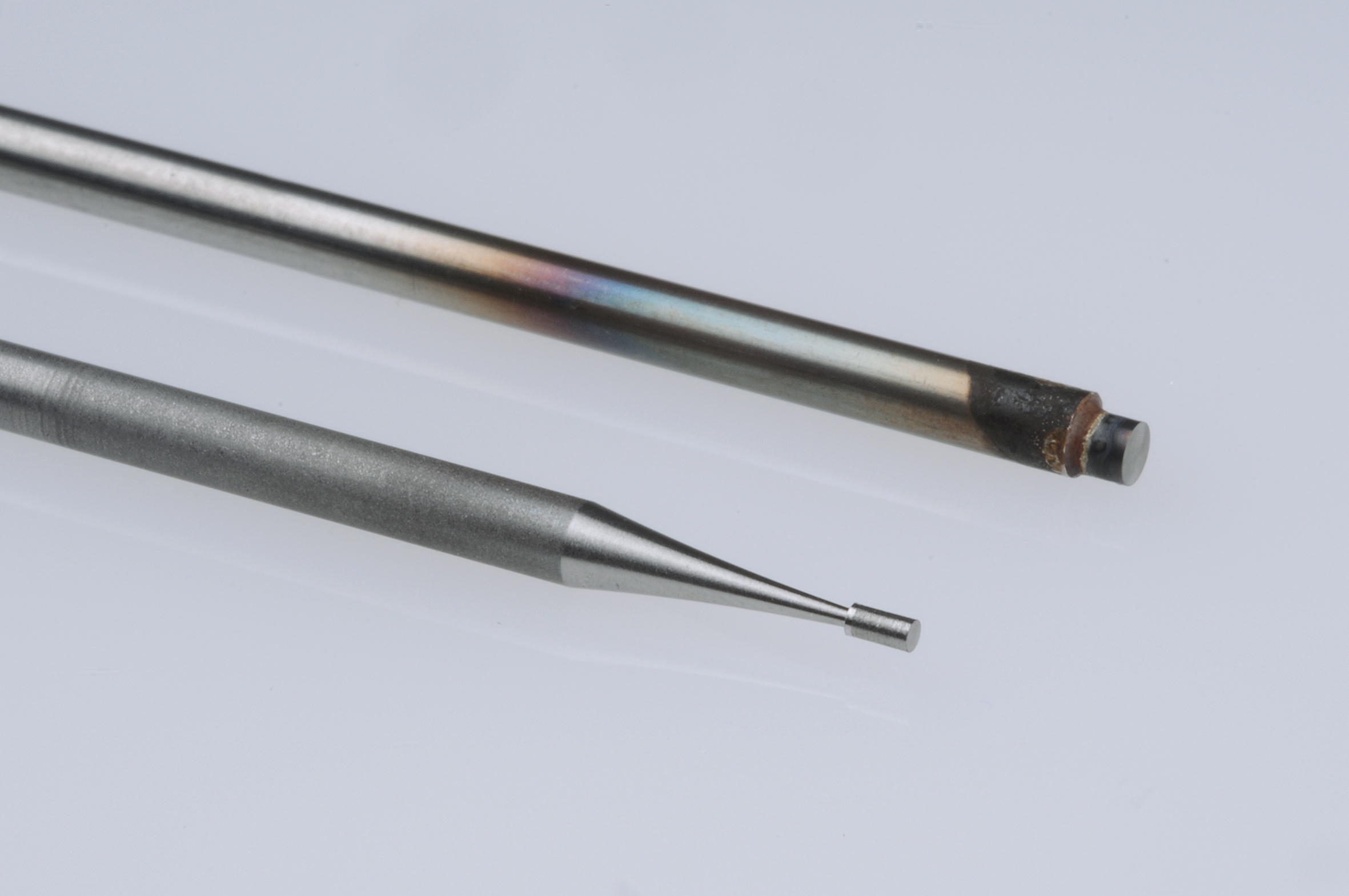

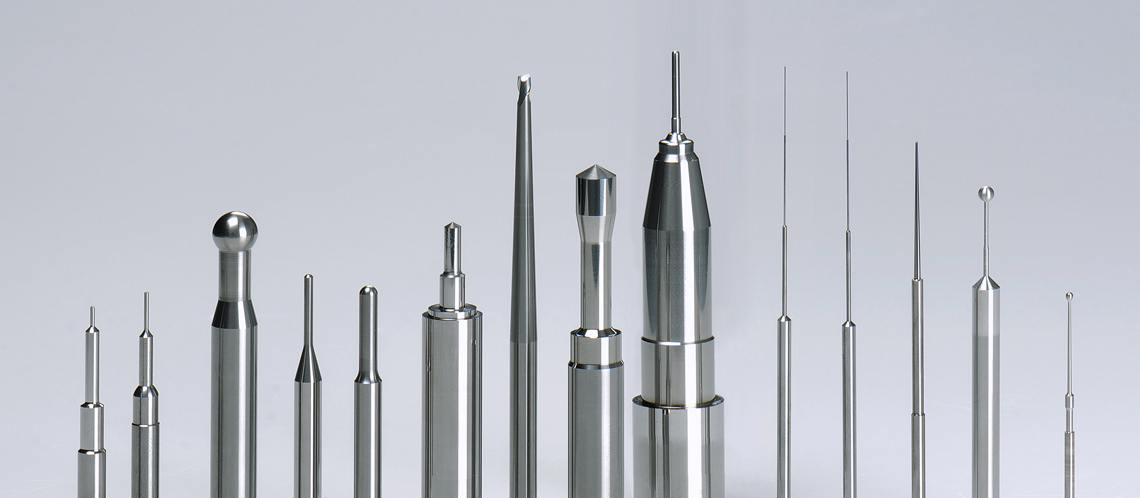

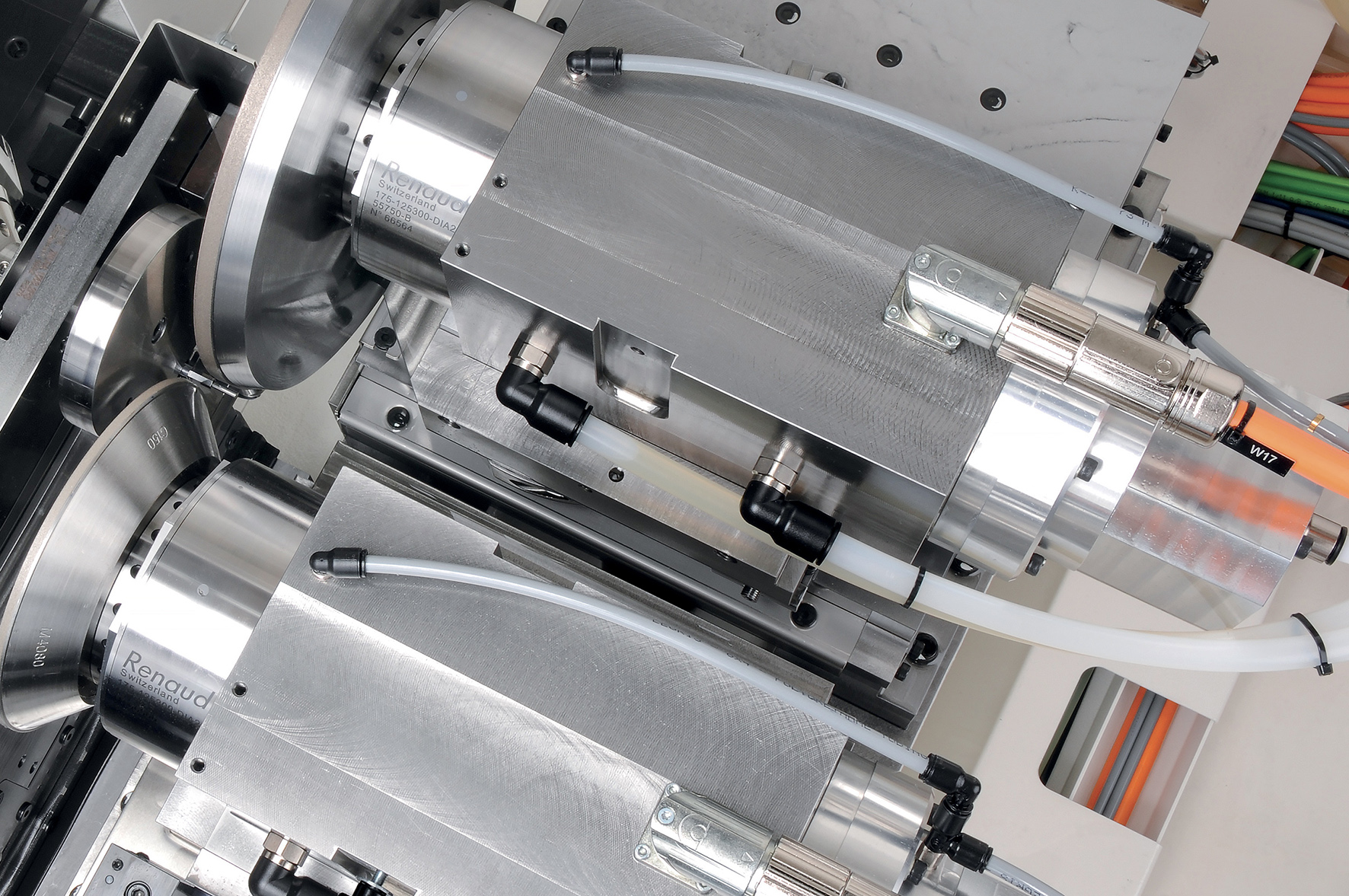

With 4 CNC axes and based on the method of peel grinding with simultaneous engagement of a roughing and a finishing wheel, the ShapeSmart®NP30 is a precision pinch and peel grinding machine for the preparation of cutting tool blanks such as endmills, drills and other stepped cylindrical tools, covering a range of diameters between Ø 0.025 and Ø 25.0 mm.

YOUR BENEFITS

• Unmatched diameter/ length ratio up to 400x D
• An integral automatic high-speed pick & place tool loader with a capacity of up to 1’360 tools as part of the standard machine
• Grinding of blanks including steps, taper, radii and more in a single setup
• Precision and size consistency in production with tolerances of just a few microns
• Grinding with multiple passes for large material removal
• Change of roughing wheel configuration in less than 5 minutes

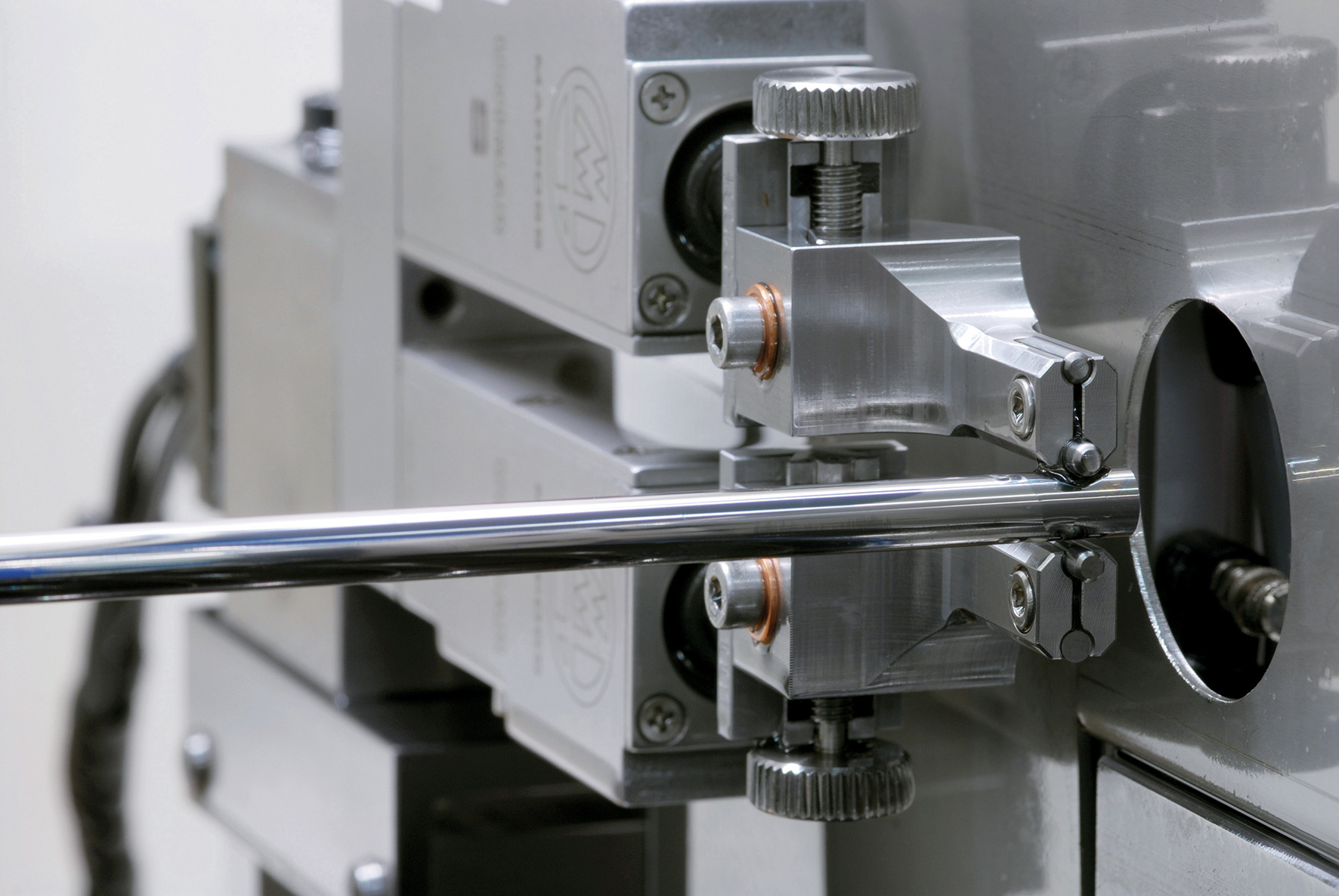

• The shank guide system ensure a TIR after grinding of less than 0.002mm.
• Automatic qualification of wheel positions
• In-process tool measuring system for unattended production and diameter control under 0.002mm.
• 3D touch probe for accurate recessed and tapered neck grinding on cutting tool blanks
• Flipper station able to grind double ended tools (up to 200mm)

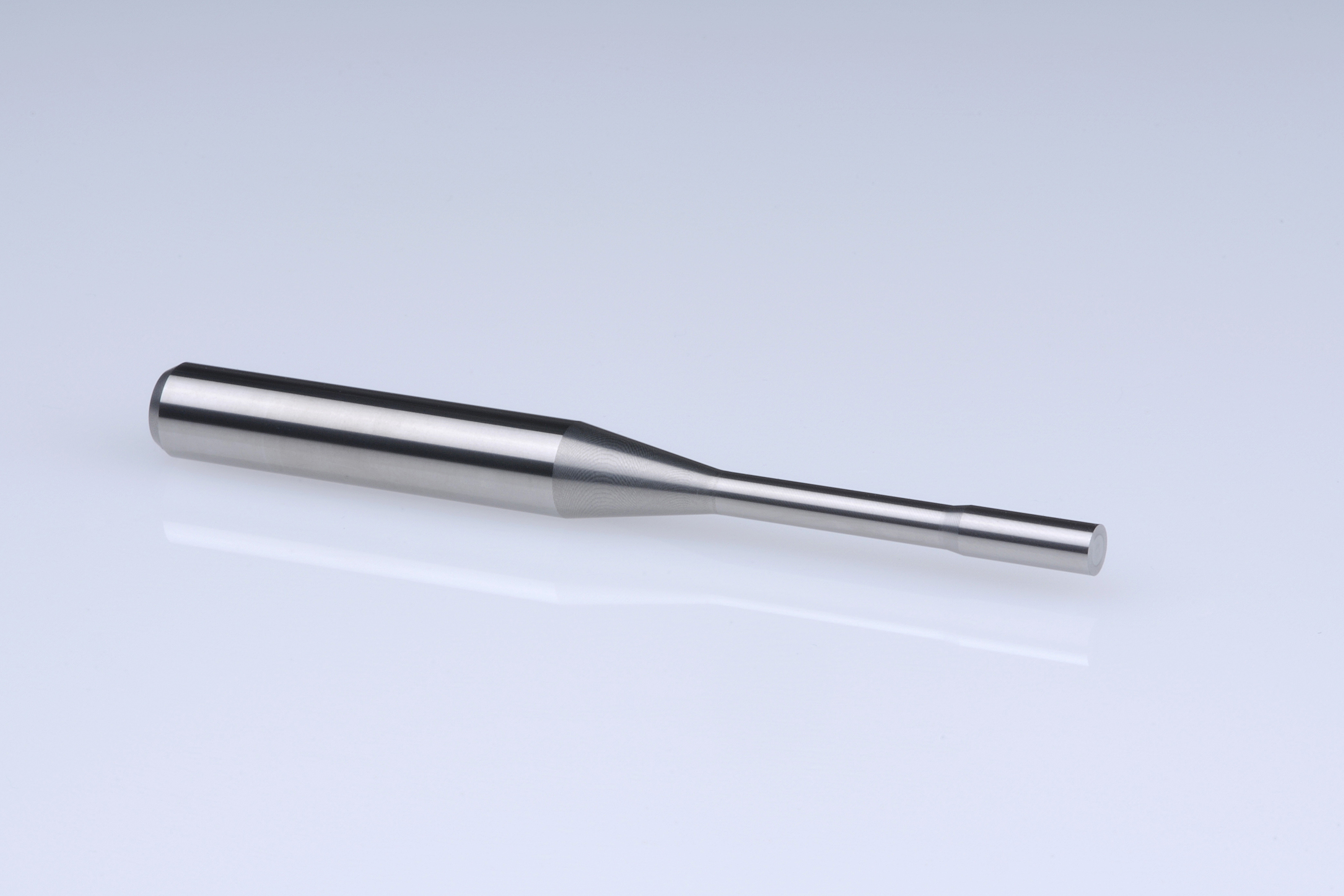

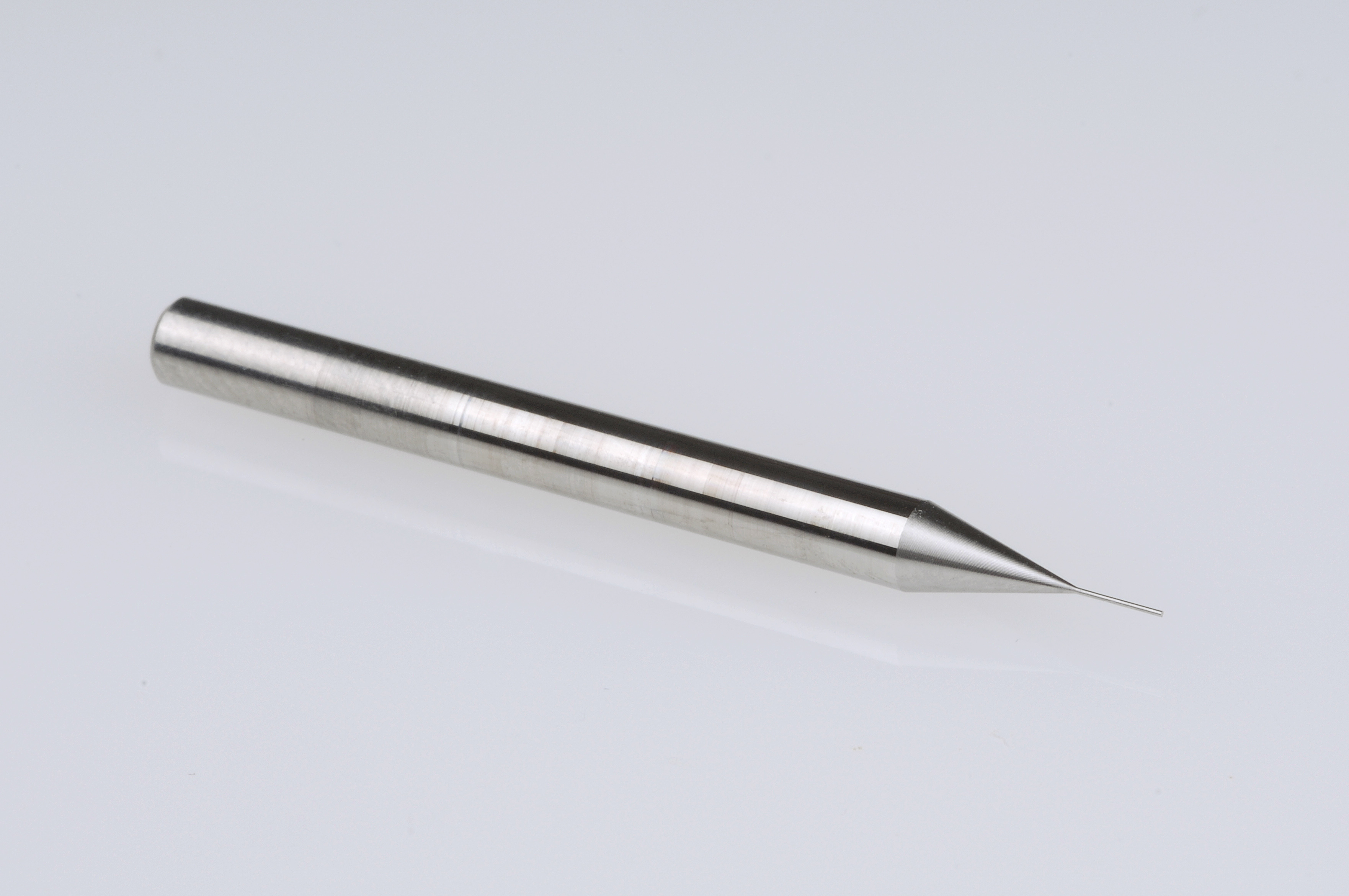

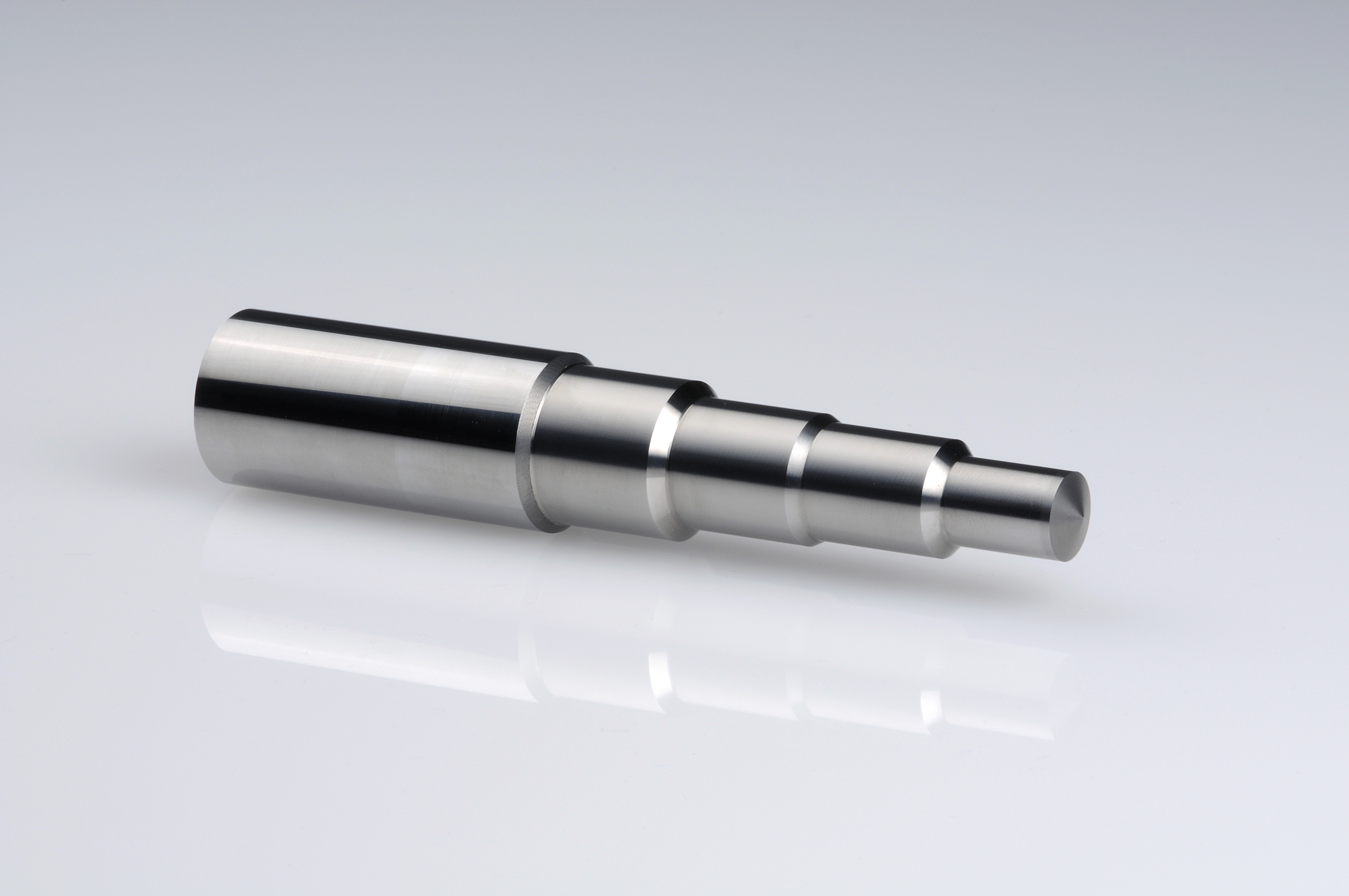

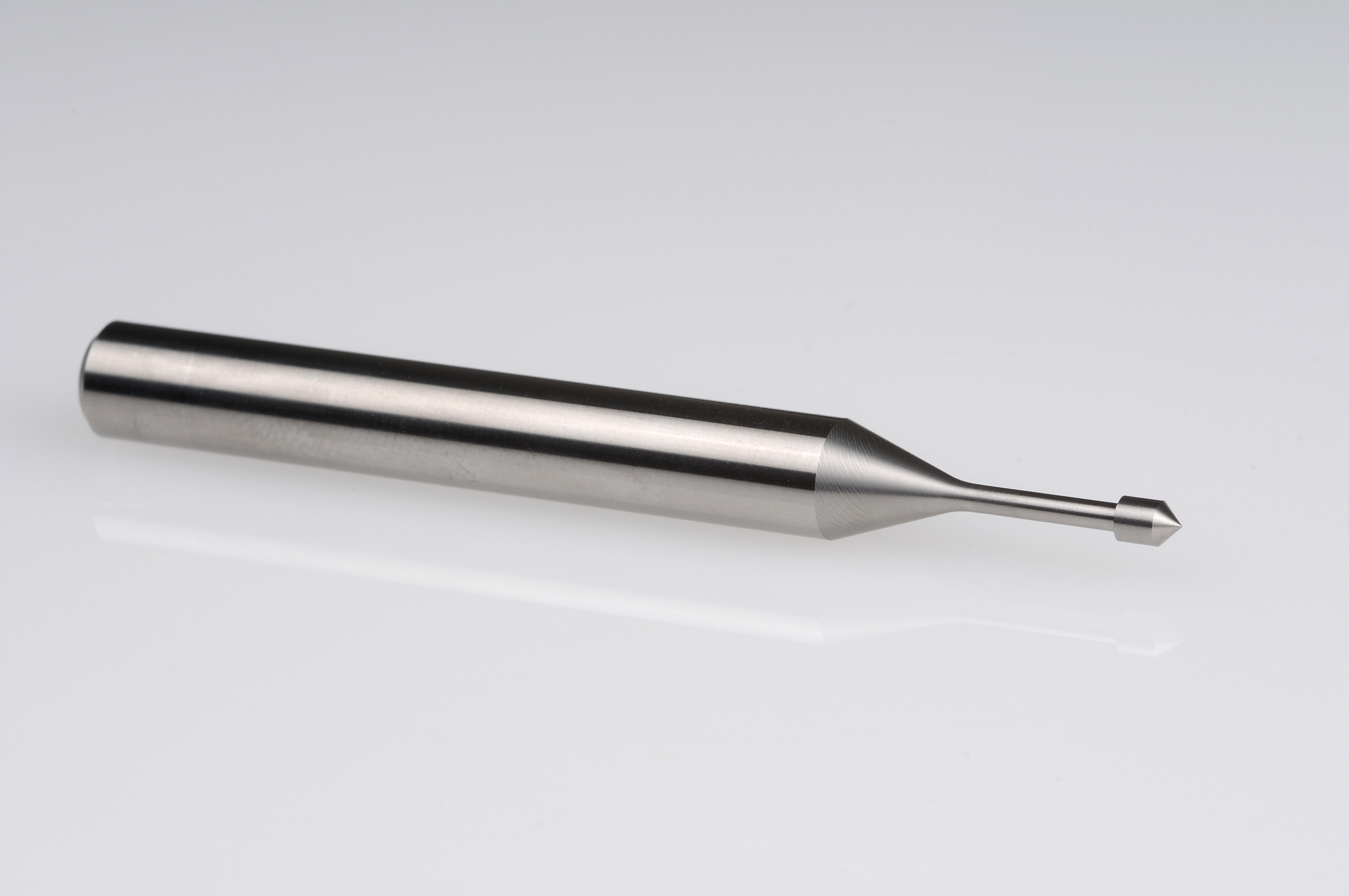

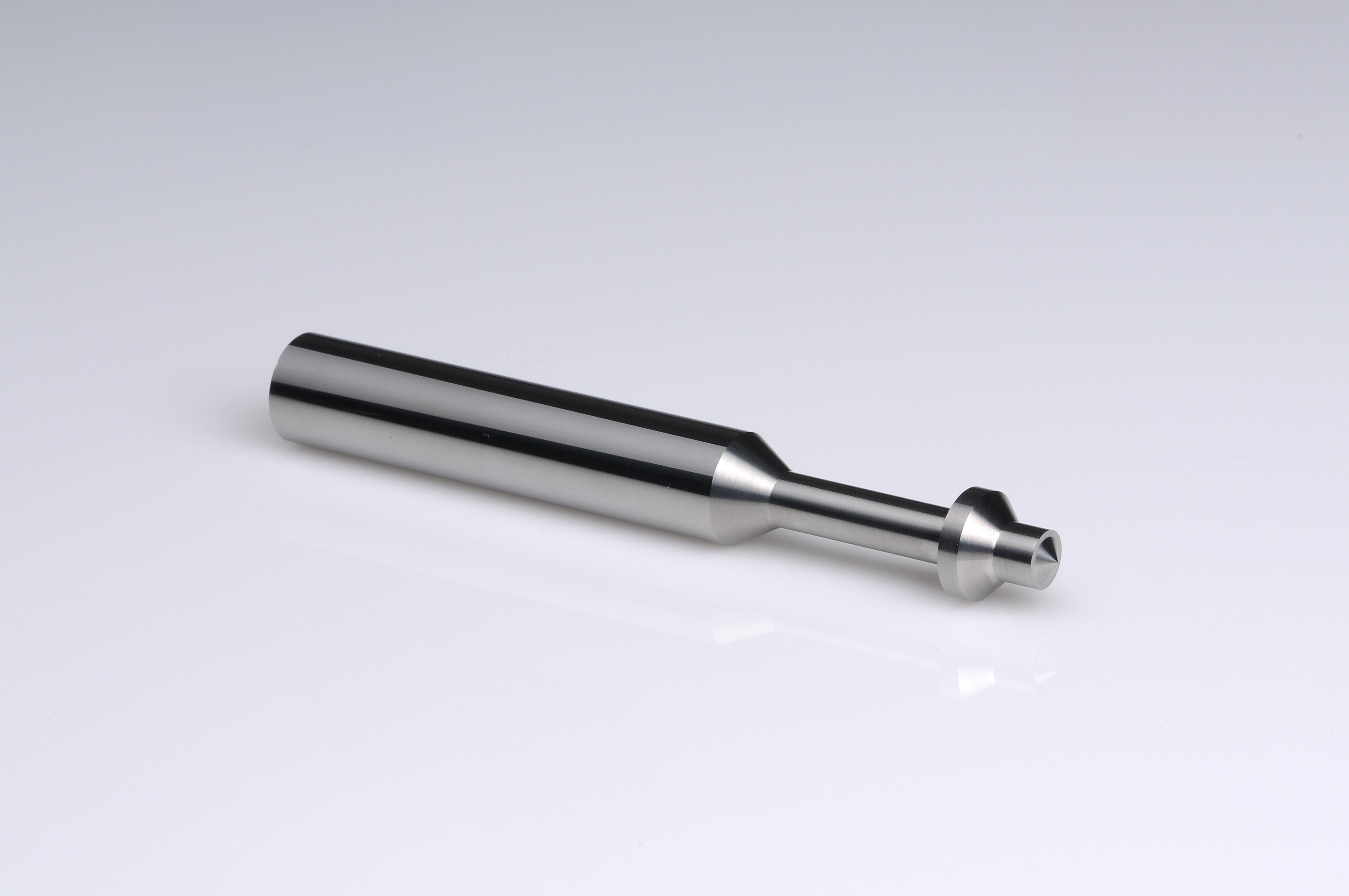

APPLICATIONS
