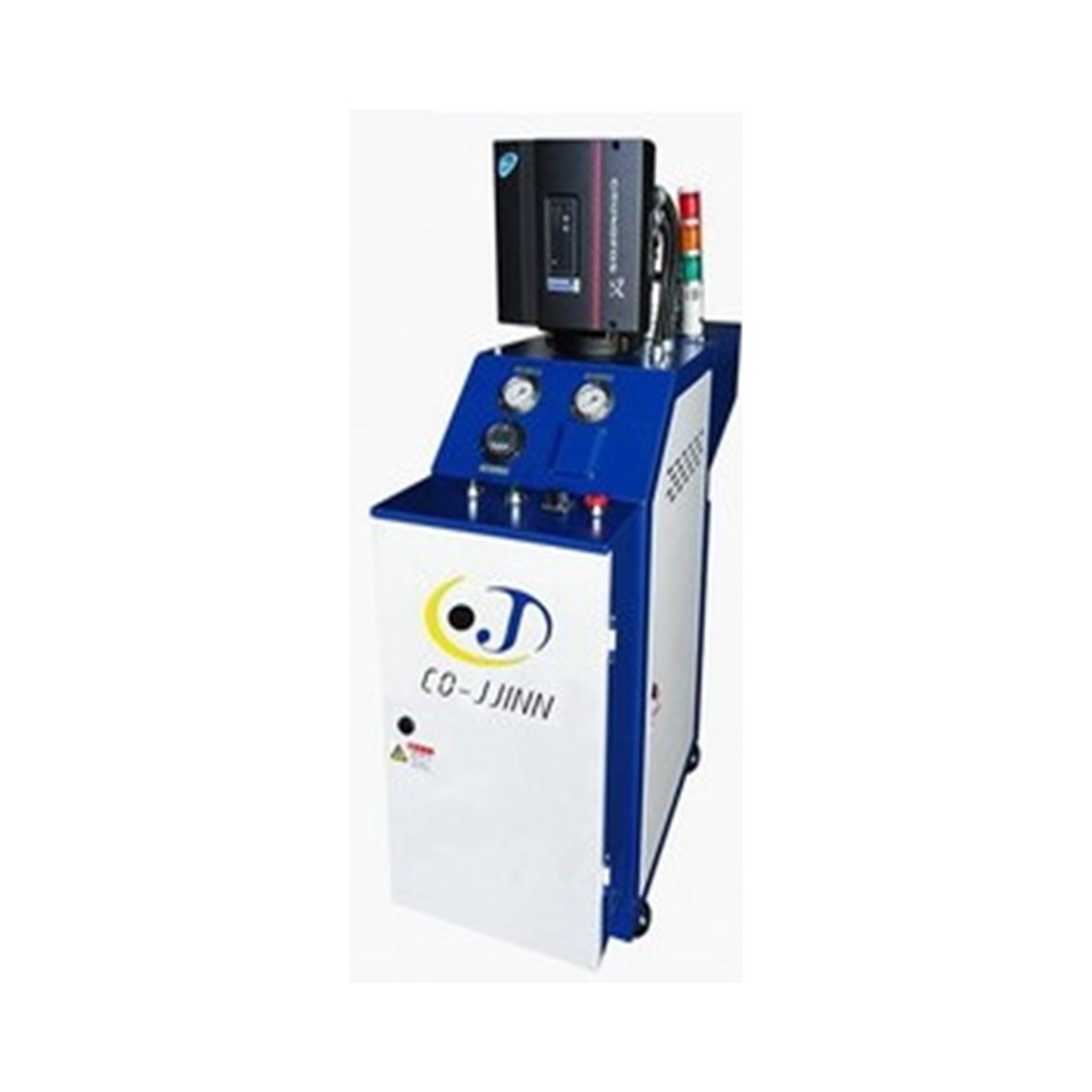

25~100 BAR High Pressure Coolant systems VFD.- Grundfos Pump

High Pressure Coolant Systems - Water Based Coolant / CO-Jjinn

Product Features:

- Solve string chip
- Increase productivity by 6 times
- Extend tool life cycle (600X for SS316L)
- Multiple CNC memories (VFD type only)
- Energy saving (VFD type only)
- Space-saving
- Keep constant pressure (recommended outlet diameter)
- Big Data analysis compatible for industrial automation
- Stable .. moreoutput and low noise
- Equipped with Grundfos inverter

Applicable Machines:

~ Turning Lathe Machine
~ Turn-Mill Machine
~ Double Column Milling Machine
~ Deep Hole Drilling Machine

Technical Information:

Model:
1. 0V025BGF-B1-1
2. GV050BGF-B1-1 /GV050BGF-R1-1
3. TV070BGF-R1-1 / 0V070BGF-R1-1
4. TV100BGF-R1-1 / 0V100BGF-R1-1


Max Pressure: 25~100 BAR
Oil Ratio: 6~100%
Max flow rate: 24L~45L/MIN
Internal Coolant Diameter: Outlet dia. beneath 3mm preferred at 50 bar
Voltage: 220V/380V/415V
Frequency /HZ: 50Hz-60Hz
Filter mesh: 5µm; 10 µm
Water inlet: 1”
Water outlet: 1/2”
Dimension (WXLXH): 42X120X150 (cm)
Option: Switchable Double Filter System/Preset Filter/ CJ-Smart/Cooler/Semi-Auto Back-washing/Auto Back-washing/Centrifugal Filtration/Lubricant Purifier
