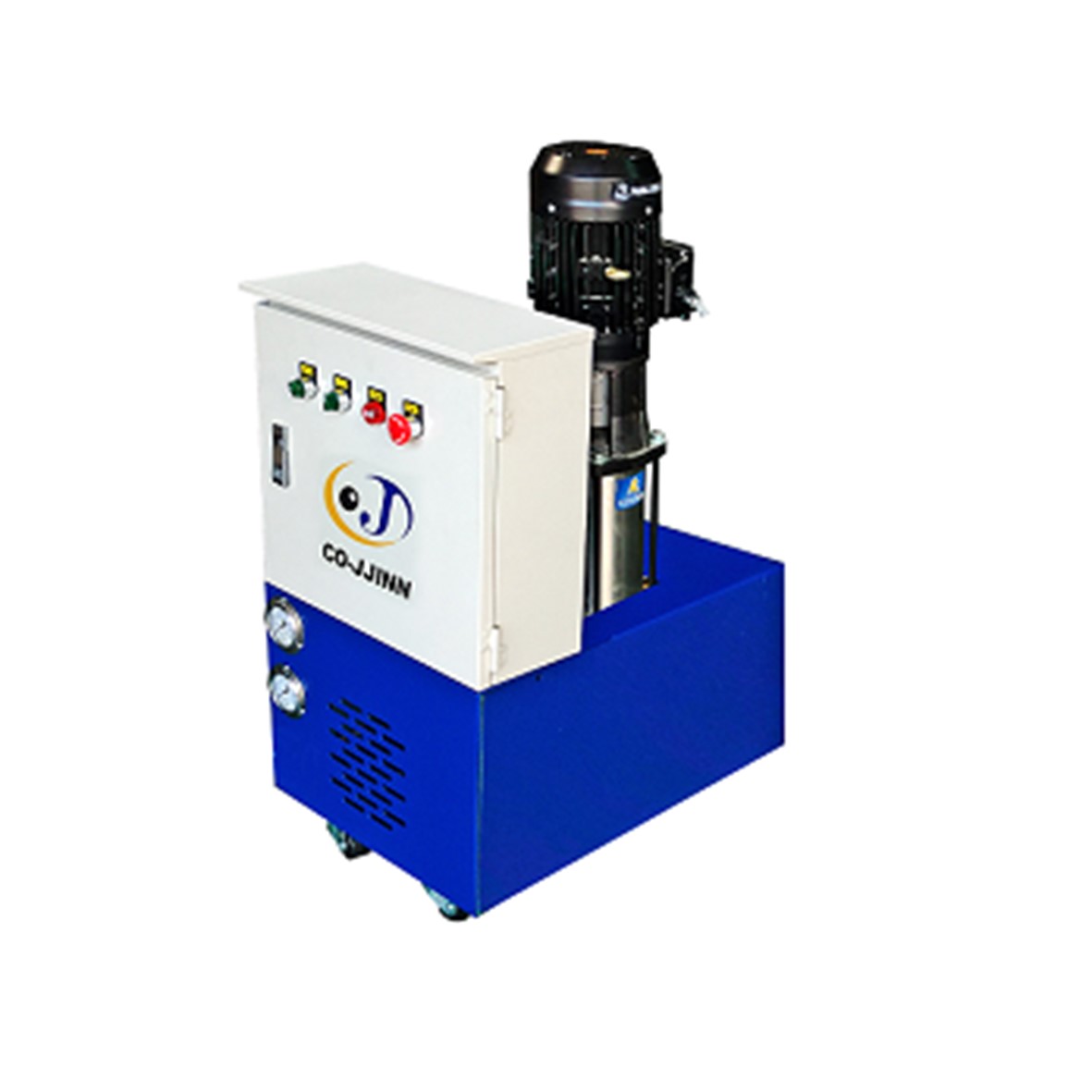

25 BAR High Pressure Coolant Systems - Fixed Freq.

High Pressure Coolant Systems - Water Based Coolant / CO-Jjinn

Product Features:

- Solve string chip
- Increase productivity by 6 times
- Extend tool life (600X for SS316L)
- Especially fit for deep hole drilling machine
- Able to install under feeder for saving working space
- Keep constant pressure (recommended outlet diameter)

Applicable Machines:

~ Milling Machine
~ Turn-m.. moreill Machine
~ Double Column Milling Machine

Technical Information:

Model: 0V025BWA-S3-XS
Max Pressure:25 BAR
Oil Ratio: 6~100%
Max flow rate: 24L/MIN
Internal Coolant Diameter: Outlet dia. beneath 2mm preferred at 25 bar
Voltage: 220V/380V
Frequency /HZ: 50Hz-60Hz
Filter mesh: 100 µm
Water inlet: 1”
Water outlet: 1/2”
Dimension (WXLXH): 46X82X110 (cm)
Option: Switchable double filter system/ Preset Filter/ CJ-Smart/Cooler/Semi-Auto Back-washing/Auto Back-washing/Lubricant Purifier
