Tool Inspection System Ranger 600
Tool Inspection System / Unimetro

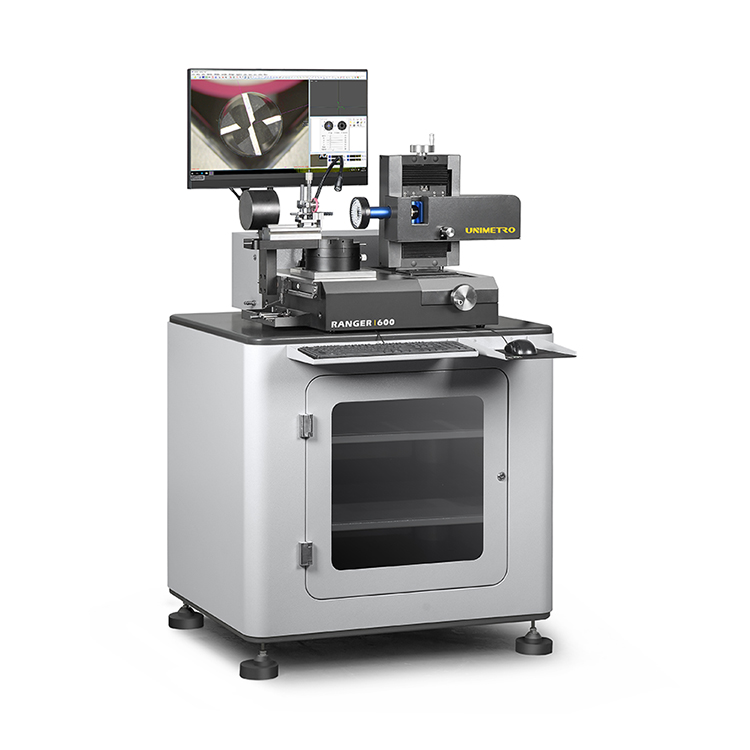

Ranger 600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under a flexible illuminating system. The Ranger600 can be employed in the metrology room, receiving inspection, or directly in production. The Ranger600 Tool Inspection system is configured with SMARTOOL universal measuring sof.. moretware, which makes it the best instrument for all types of metal cutting tools, starting from fast checkings of single criteria, such as the outer contour or angles, to complete control of special tool geometries.
Advanced Design
~ Ergonomic design and solid construction.
~ HD image capturing and display combination, also microscope magnification level is optional.
~ Stable and accurate V block, easy for tools holding, and alignment.
~ Mechanical fixed measuring angle of 0 degree and 90 degrees are available on the rotary stage.
~ High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
~ Multiple sections programmable LED ring light for surface illumination, also including contour lighting and free-angle auxiliary light for standard features.
~ SMARTOOL measuring software offers a specific measuring function for cutting tools.
~ Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.
~ Measuring result fast output to EXCEL file report or CAD file.
~ ALL-IN-ONE PC system makes the machine more stable.
Leading cutting tools measuring solution
The SMARTOOL Cutting Tools Measuring Software is developed based on high accuracy optical and digital measuring technology, it is easy and intuitive to operate and offers numerous measuring and evaluation algorithms specifically for tools manufactured or sharpened in the grinding business.
Program Features:
- Easy operation
- Dynamic Real-Time curve view
- Fast angle measuring with retical
- CAD comparison
- Multi-language
- Software control lighting
Measuring Capability:
> Helix angle
> Core diameter
> Axial angle
> Line form and more...
Technical Information:
X-axis travel: 80mm
Y-axis Travel: 60mm
Z-axis measuring range: 60mm
Max tool Diameter: 50mm
Max tool length: 300mm
Working distance: 90mm
Lens: 0.7-4.5X dented zoom lens
Camera: 2M pixel HD camera/5M pixel HD camera(Optional)
Linear scale resolution: 0.0001mm
Magnification: 12.6X~79.2X/25.2X~158.4X(Optional)
Field of view: 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm(Optional)
Measuring accuracy: X~Y,(2.5+L/100)µm,L is the measured length
PC: ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination: 8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable.
Input format: DXF files
Output format: EXCEL,DXF
