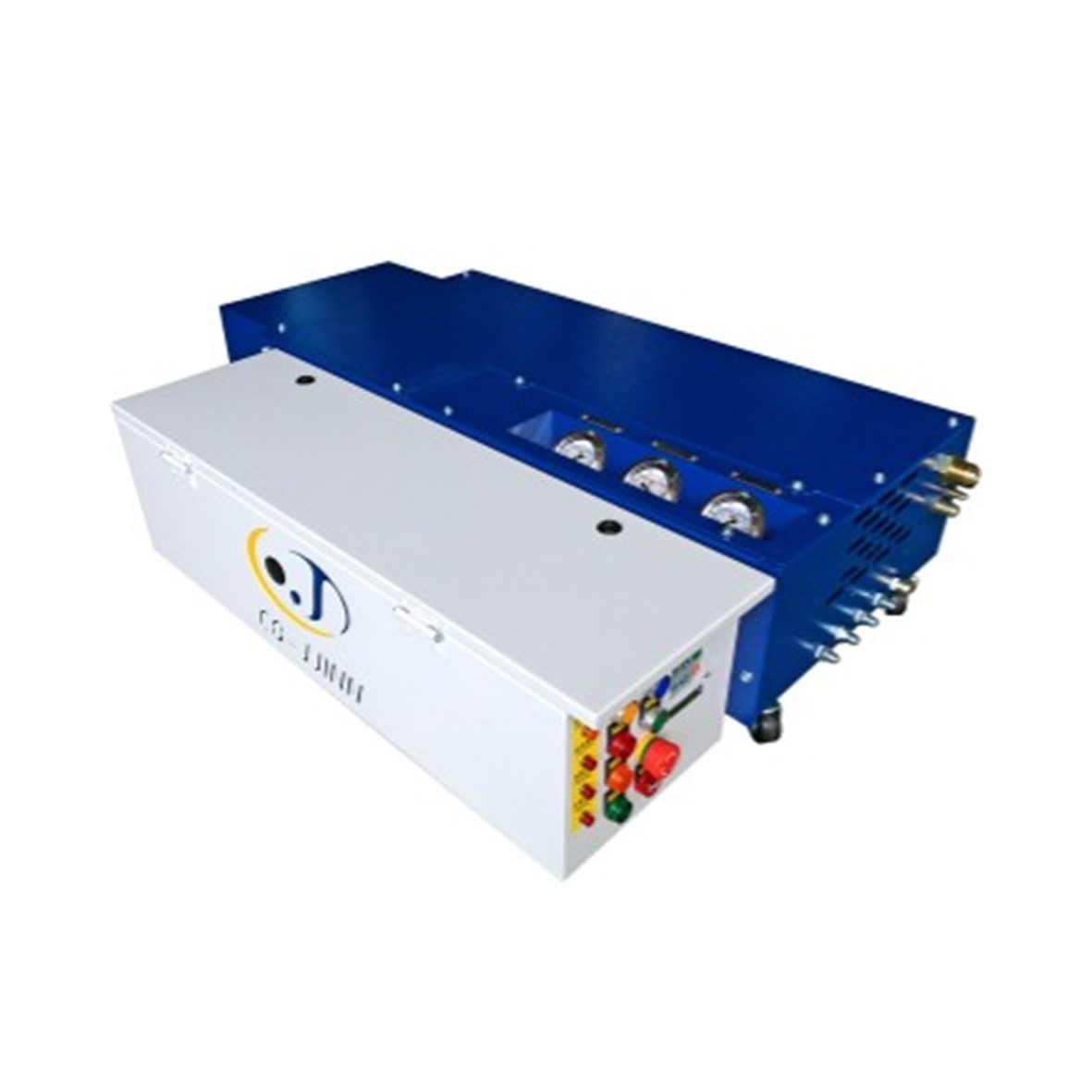

50~140 BAR High Pressure Coolant Systems - VFD/ Fixed Freq

High Pressure Coolant Systems - Oil Based Coolant / CO-Jjinn

Product Features:

- Solve string chip
- Increase productivity by 6 times
- Extend tool life (600X for SS316L)
- Especially fit for deep hole drilling machine
- Multiple CNC memories (VFD type only)
- Energy saving (VFD type only)
- Able to install under feeder for saving working space
- Keep constant pressure (recommended out.. morelet diameter)

Applicable Machines:

~ Auto Lathe Machine
~ Turning Machine
~ Grinding Machine

Technical Information:

Model:
1. 0V050BTW-IDOS-XS
2. 0V070BTW-IDOS-XS
3. TV070BTW-IDOS-2 / 0V070BTW-IDOS-2
4. TV140BTW-IDOS-2 / 0V140BTW-IDOS-2

Max Pressure: 50~140 BAR
Oil Ratio: 100%
Max flow rate: 23L/MIN
Internal Coolant Diameter: Outlet dia. beneath 2mm preferred at 50~140 bar
Voltage: 220V/380V/415V
Frequency /HZ: 50Hz-60Hz
Filter mesh: 5µm ; 10 µm
Water inlet: 1”
Water outlet: 3/8”
Dimension (WXLXH): 83X75X30 (cm)
Option:Switchable Double Filter System/Preset Filter/ CJ-Smart/Cooler/Semi-Auto Back-washing/Auto Back-washing/Lubricant Purifier
