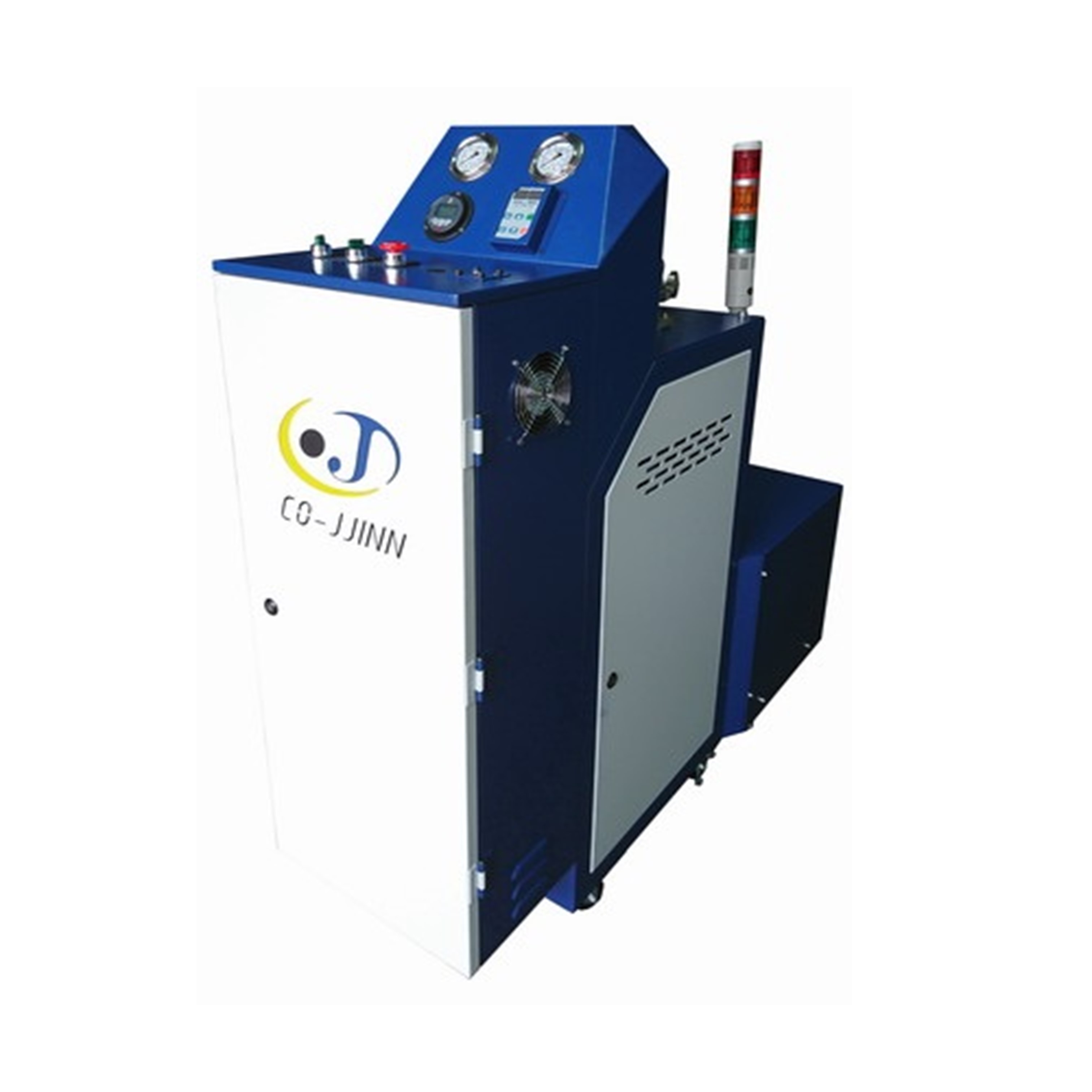

70 BAR High Pressure Coolant Systems - VFD/ Fixed Freq.

High Pressure Coolant Systems - Oil Based Coolant / CO-Jjinn

Product Features:

- Solve string chip
- Increase productivity by 6 times
- Extend tool life (600X for SS316L)
- Multiple CNC memories (VFD type only)
- Energy saving (VFD type only)
- Space-saving
- Keep constant pressure (recommended outlet diameter)
- Big Data analysis compatible for industrial automation
- Stable output.. more and low noise

Applicable Machines:

~ Auto Lathe Machine
~ Turning Machine
~ Grinding Machine

Technical Information:

Model: TV070BTW-B1-1/ 0V070BTW-B1-1
Max Pressure: 70 BAR
Oil Ratio: 100%
Max flow rate: 23L/MIN
Internal Coolant Diameter: Outlet dia. beneath 2mm preferred at 70 bar
Voltage: 220V/380V/415V
Frequency /HZ: 50Hz-60Hz
Filter mesh: 5µm; 10 µm
Water inlet: 1”
Water outlet: 1/2”
Dimension (WXLXH): 42X101X140 (cm)
Option: Switchable double filter system/ Preset Filter/ CJ-Smart/Cooler/Semi-Auto Back-washing/Auto Back-washing/Lubricant Purifier
