Cylindrical Grinding - Roughing and Finishing
Grinding Wheel / Said
Roughing wheel with a metal bond which guarantees a long life, high removal capacity, and maximum profile retention.
Finishing wheel with resin bond in 15 or 25 grit, which guarantees an optimal finish and a homogeneous consumption in addition to optimal profile retention.
Benefits:
~ Extended tool life
~ Excellent finishing with B2.1 bo.. morend
~ Optimum profile retention with MD1 bond
~ High removal rate
Application:
High-performance cylindrical grinding of carbide blanks
Wheel dimension:

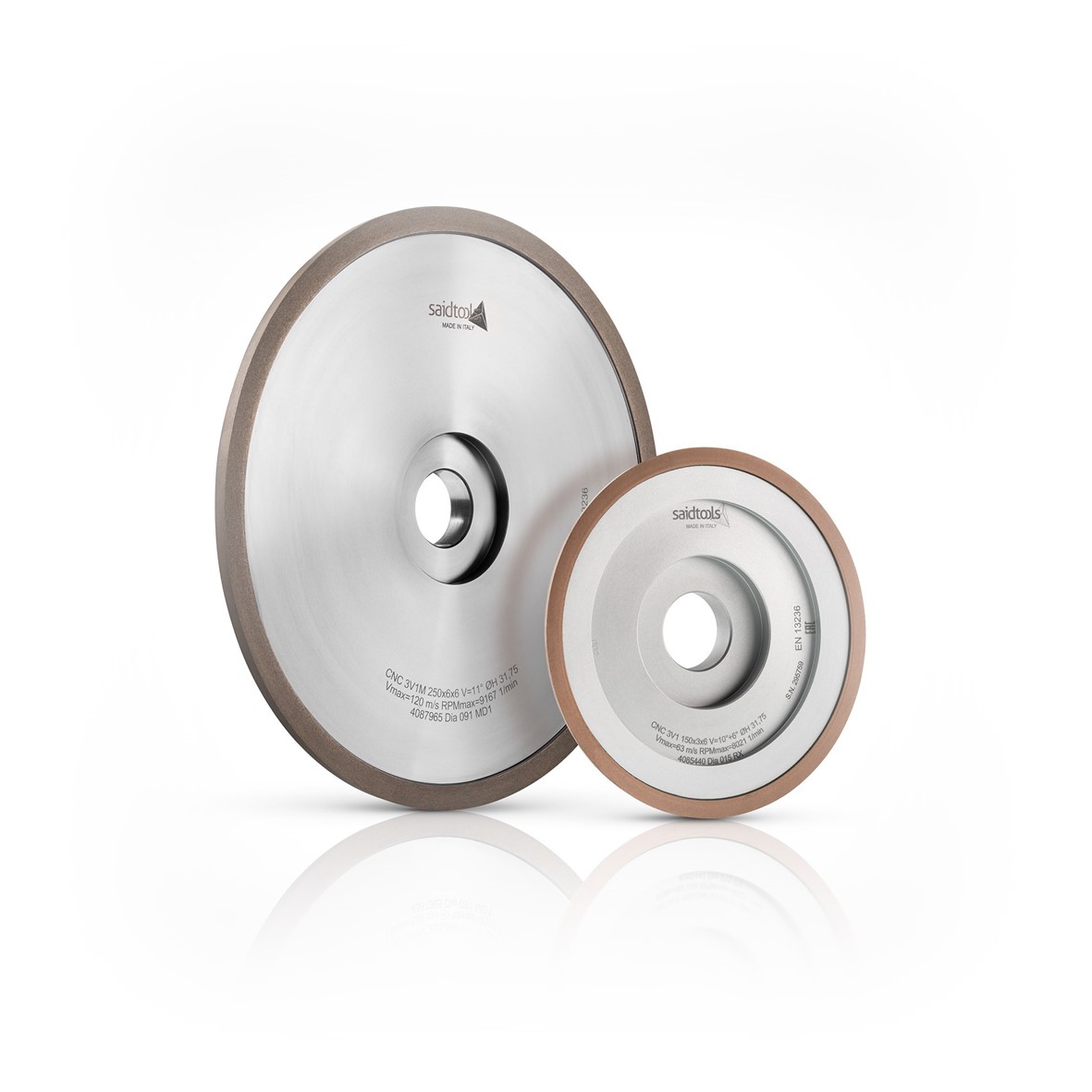

Roughing wheel: CNC 3V1 Ø 250/ 200 x 6 x 6 V=11° H31.75 T=19 E=12 DIA 91 MD1
Finishing wheel: CNC 3V1 Ø150 x 3 x 6 V=10°+6°H31.75 T=24 E=12 Dia 025 RX8.0/ B2.1
